Supco mw9458 Microwave Interlock Switch 125/250V 16A

Product Description

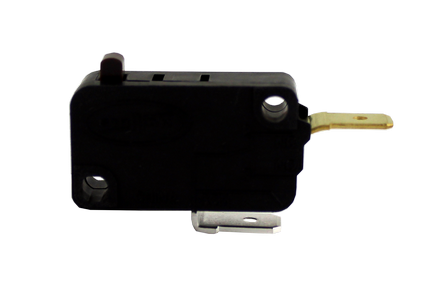

The SUPCO mw9458 is a microwave door interlock switch that monitors the position of the door latch and signals the electronic control board whether the door is open or closed. Rated at 125/250 volts and 16 amps, this switch is a direct replacement component for microwave ovens requiring latch-position feedback to the main control. It is typically installed by appliance service technicians during door switch diagnostics or control board-related repairs.

This interlock switch is suited for residential microwave oven applications where the door safety circuit requires reliable open/close status reporting. It cross-references to OEM part number W10269458. Installers working on units with intermittent start failures, no-power conditions, or door latch faults commonly replace this switch as part of a systematic door switch circuit diagnosis.

Key Features

• Monitors door latch position and communicates open/closed status to the electronic control board
• Rated 125/250 volts for compatibility across standard residential microwave wiring configurations
• 16-amp rating supports typical microwave interlock circuit loads
• 1/2 HP horsepower rating
• Cross-references OEM part number W10269458

Compatibility

This part cross-references OEM part number W10269458. Designed as an OEM-style replacement interlock switch for residential microwave ovens using a door latch position sensing circuit.

Installation Notes

Microwave door interlock switches must be replaced by a qualified appliance service technician. Always disconnect the microwave from its power source before beginning any disassembly. Microwave ovens can retain lethal high-voltage charges in the capacitor even after being unplugged — capacitor discharge procedures must be followed before touching internal components. Verify switch orientation and terminal connections match the original before reassembly.

Technical Specifications

• Voltage: 125/250 volts
• Amperage: 16 amps
• Horsepower: 1/2 HP

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: mw9458
