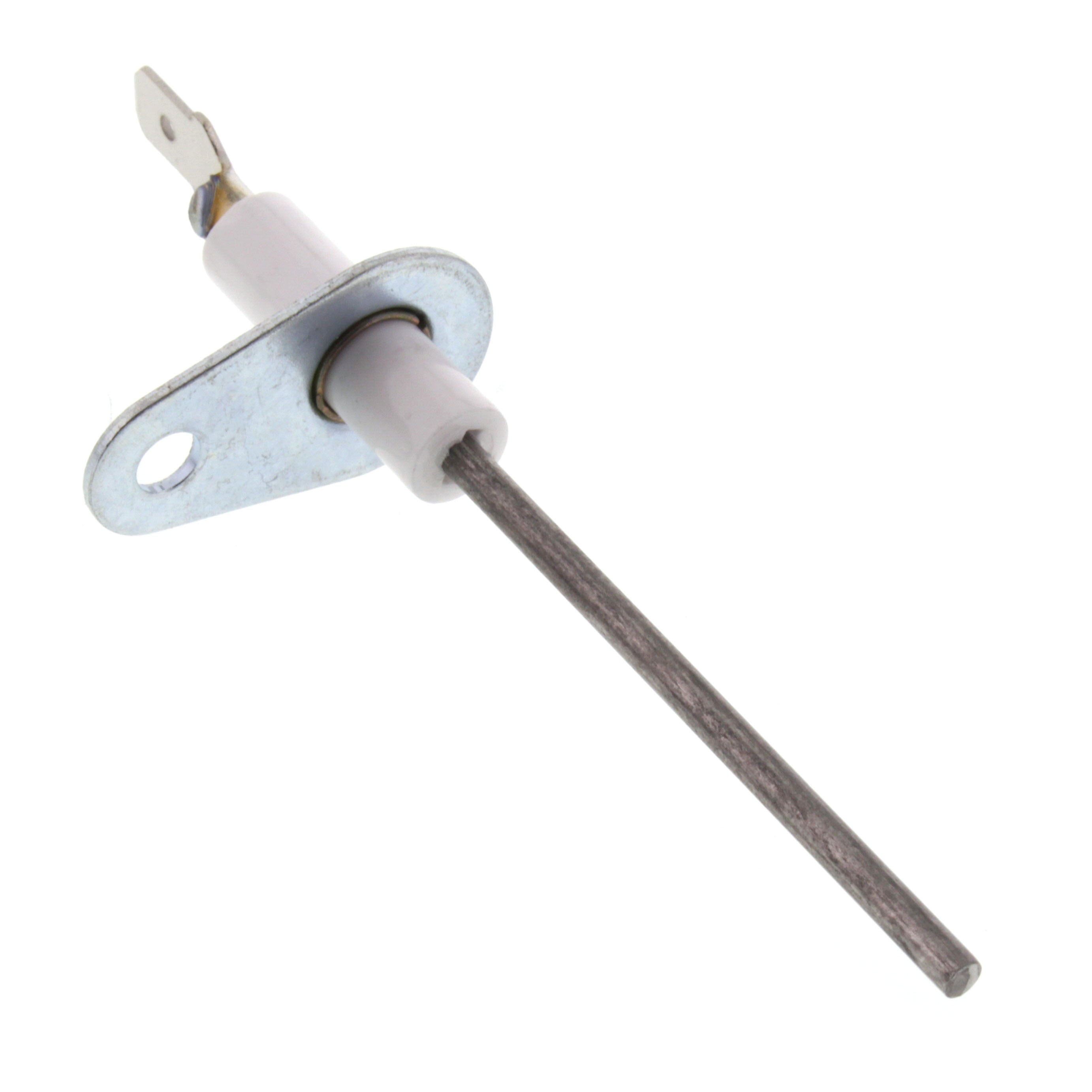

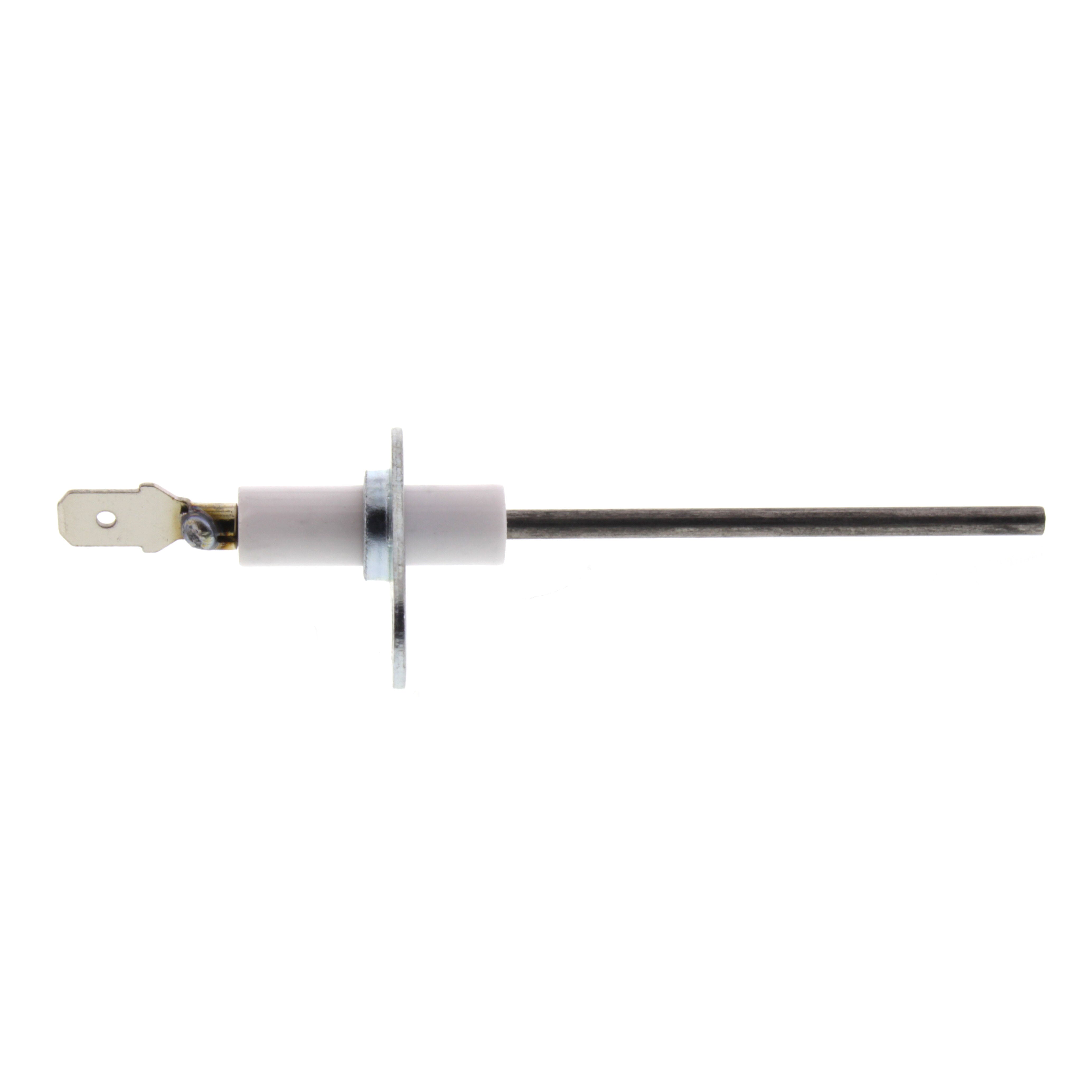

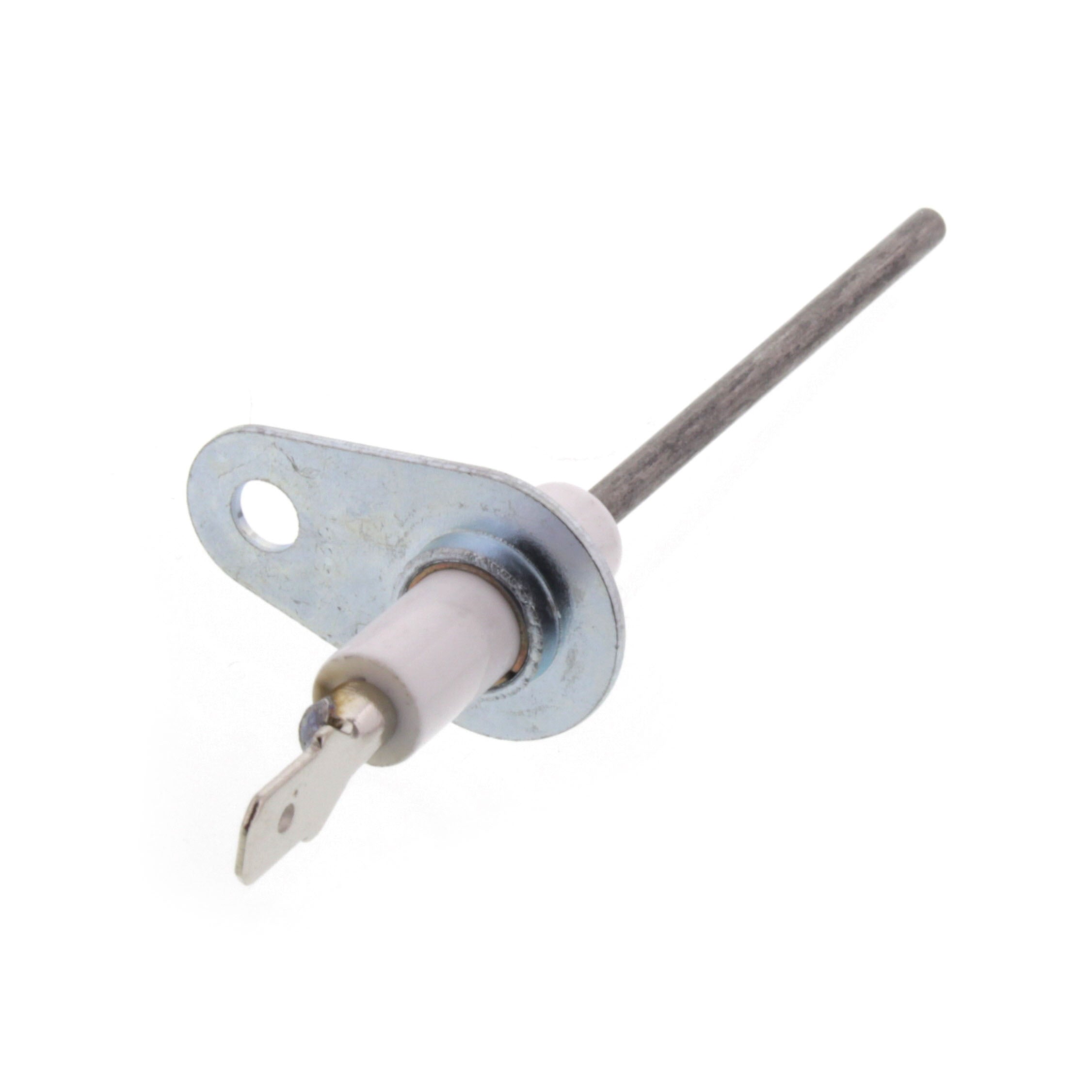

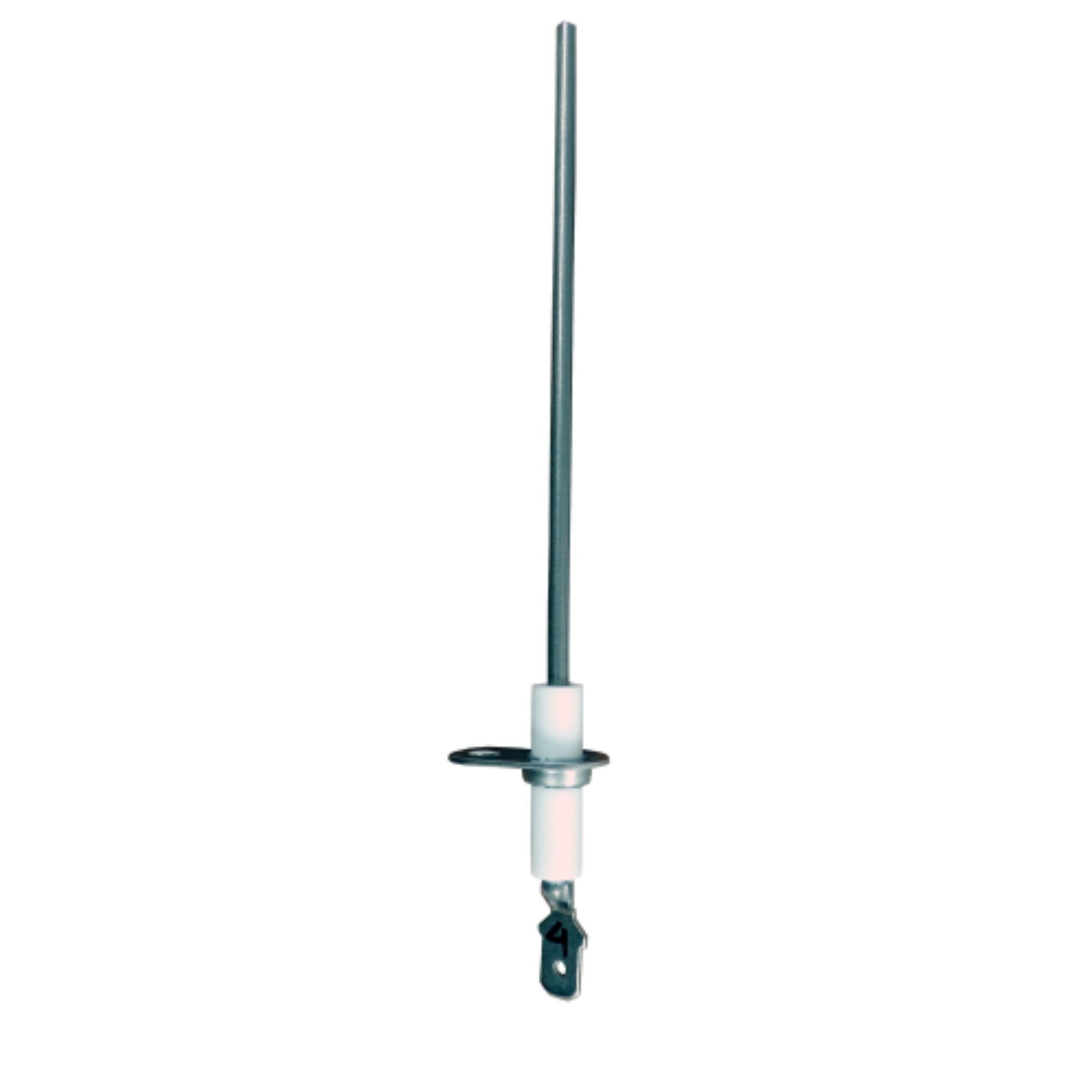

Supco FLS010 Flame Sensor 4 inches replacement 0130F00010

Product Description

The SUPCO FLS010 Flame Sensor is designed for use with hot surface or direct spark ignition systems. The flame sensor can mount on multiple burners or adjacent to the igniter. It features a high-temperature Kanthal flame rod that withstands up to 1800° F and a 0.25 Inch quick-disconnect termination.

• Aluminum Ceramic Insulator
• For Hot Surface Ignition (HSI) Systems
• Kanthal Flame Rod

Product Highlights

The SUPCO flame sensor replaces many popular furnace sensors and is used on hot surface ignition (HSI) systems and for spark ignition and flame sensing.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: FLS010
• Country of Origin: China

Technical Specifications

• Type: Flame Sensor
• Product Length: 4 Inches
• Frequency: 60 Hz
• Connection Size: 1/4 Inch
• Maximum Operating Temperature: 1800 F
• Used On: Hot Surface Ignition System, Spark Ignition, Flame Sensing, HVAC/R System
• Termination Type: 0.25 Inch Quick-Disconnect
• Item Number: FLS010
• Length (Flange to Tip): 4"
• Termination: .25" Quick Disconnect
• Applications: HVAC/R
• MPN: FLS010
• Manufacturer: Supco
• Length (Inches): 4"
• Voltage: 120 Volts
• Phase: 1
• Mounting Type: Flange Mount
• Item Model Number: FLS010
• Product Type: Sensor
• Catalog Number: FLS010
• Electrical Connections: 1/4 in Quick Connect
• Gas Type: LP/NG
• Probe Length (In.): 3 3/4 in
• Width (In.): 6 1/4 in
• Height (In.): 1/2 in
• Depth (In.): 7/8 in
