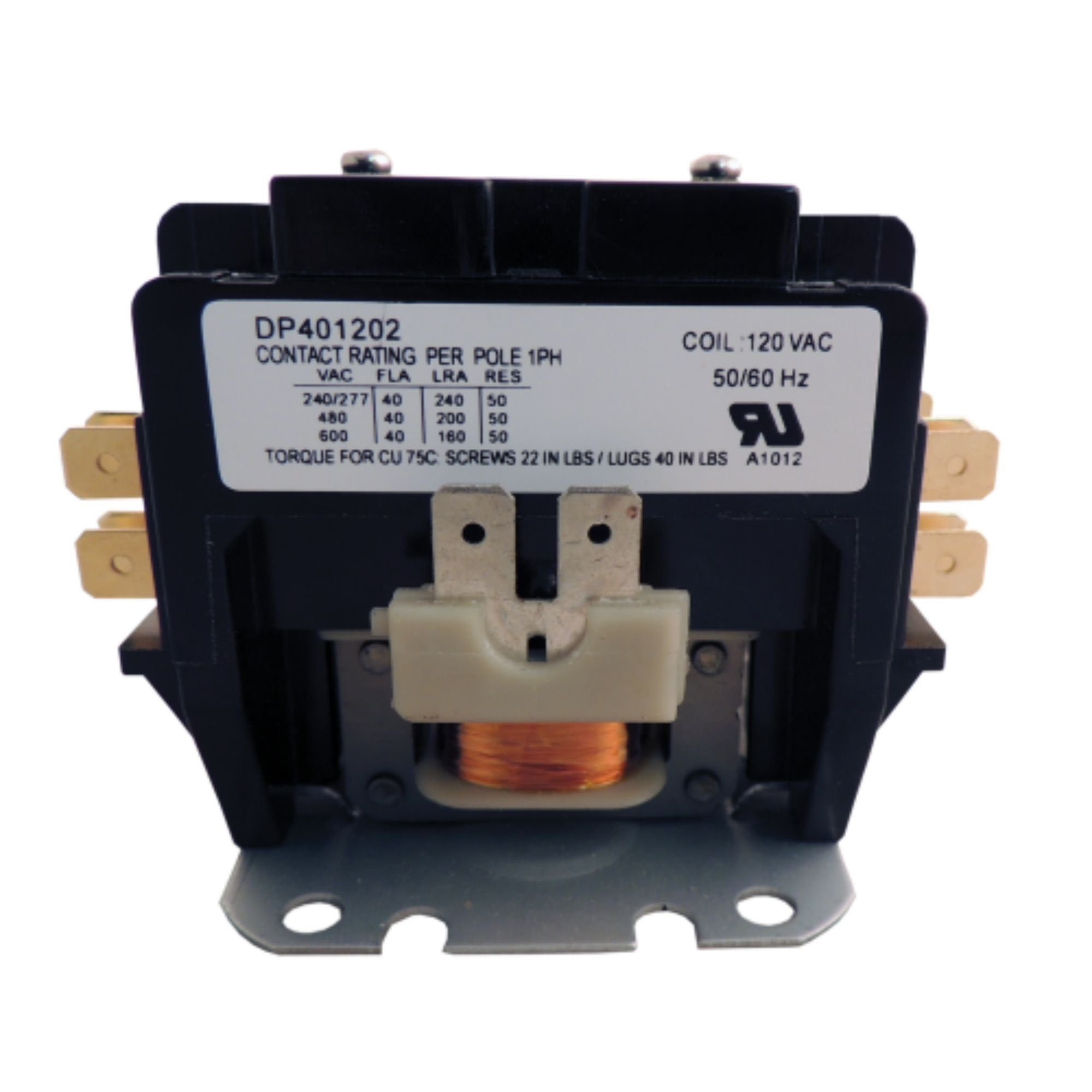

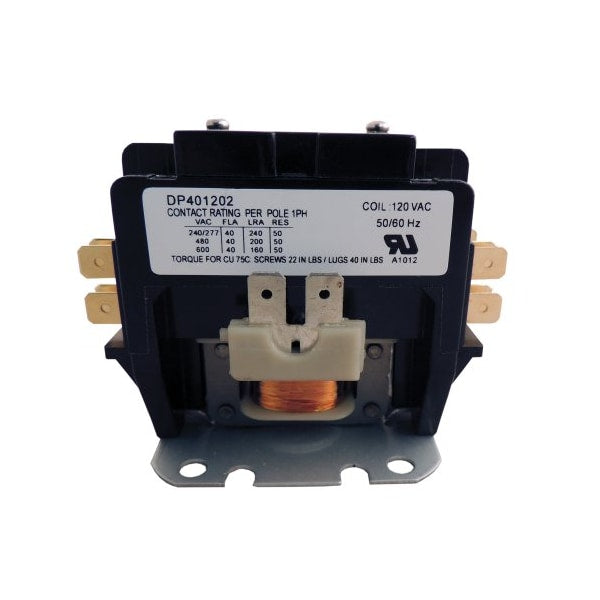

Supco DP401202 Contactor 40A 120V 2 Pole

Product Description

The SUPCO DP401202 is a contactor designed for use in HVAC&R systems. It is available in 1.5, 2 and 3 pole configurations from 20 through 90 full amps. Its compact universal design allows replacement of the most common brands.

• Designed for use in HVAC&R systems
• Available in 1.5, 2 and 3 pole configurations from 20 through 90 full amps
• Compact universal design allows replacement of the most common brands

Product Highlights

This contactor features a space-saving design, silver cadmium oxide contacts, and interchangeable mounting with many competitive contactors. It is also CSA approved and UL recognized.

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: DP401202
• Country of Origin: China

Technical Specifications

• Type: Contactor
• Poles: 2
• Voltage: 120v
• Amperage: 40
• Full load amps: 40 FLA
• Coil voltage: 120V
• Number of poles: 2 Pole
• Resistive Load Amperage (RLA): 50A
• Termination: Box Lug
• Termination Torque: 35-inch pounds
• Operating Temperature: -40°F to 150°F (-40°C to 65°C)
