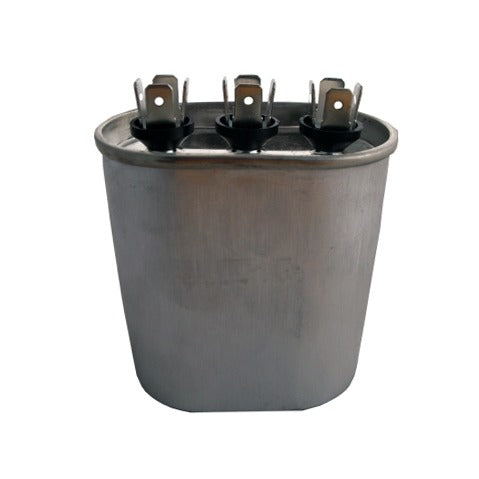

Supco CD45+7.5X440 Run Cap 440 V (45 + 7.5 uF)

Product Description

Supco CD45+7.5X440 is a motor run capacitor for central air conditioners in an oval dual-run housing. It is rated 440 V with 45 + 7.5 uF capacitance and ±5% tolerance, built with Type 2 construction using non-PCB biodegradable synthetic oil and a physical safety interrupter. The capacitor features quad blade quick connect terminals and is UL recognized, CSA certified, and VDE approved for HVAC motor run applications.

• Type 2 construction with non-PCB biodegradable synthetic oil and physical interrupter for safety
• Dual-run oval capacitor rated 440 V with 45 + 7.5 uF capacitance and ±5% tolerance; quad blade quick connect terminals
• Life tested to 120% of rated voltage at 85 C for 1,000 continuous hours and cycle tested to 140% at 85 C for 100,000 cycles; UL, CSA, VDE certified

Product Highlights

Oval dual-run motor run capacitor, 440 V, 45 + 7.5 uF, Type 2 construction, quad blade terminals, UL/CSA/VDE certified

Product Information

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: CD45+7.5X440
