Sealed Unit Parts Co SPP6TD Compressor Protection Package Combination

Product Description

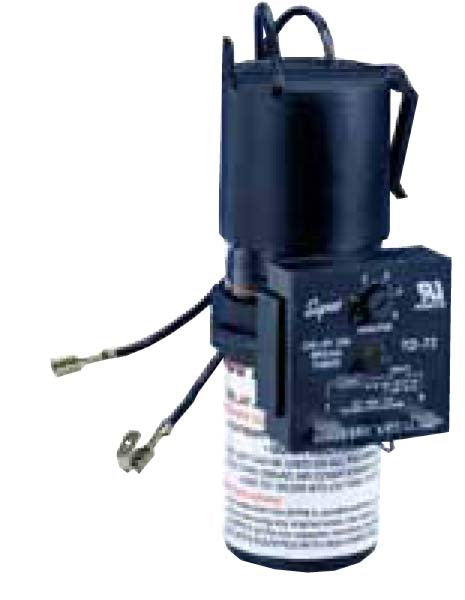

The Sealed Unit Parts Co SPP6TD is a compressor protection package designed for single-phase air conditioning and refrigeration systems. This unit integrates a hard start kit and comprehensive compressor protection, making it effective in low voltage situations and for hard-starting compressors. It includes an adjustable delay feature that allows for a delay from six seconds to five minutes, ensuring reliable operation. The relay coil works at the same voltage as the load, which enhances performance.

• Combines a hard start kit with maximum compressor protection.
• Designed for use on any single-phase air conditioner or refrigeration unit.
• Features an adjustable delay from six seconds to five minutes.

Product Highlights

The SPP6TD effectively prevents start capacitor venting, protecting the motor when the compressor fails to start. The unit also features quarter-inch male quick connect terminals, which simplify installation and ensure secure electrical connections.

Product Information

Standard Information

• Brand: Sealed Unit Parts Co
• MPN: SPP6TD

Technical Specifications

• Adjustable Delay: 6 seconds to 5 minutes
• Torque: 390 ounce inches (500%)
• Voltage: 108-130 VAC
• Capacitor: 330 VAC
• Terminals: Quarter-inch male quick connect terminals
