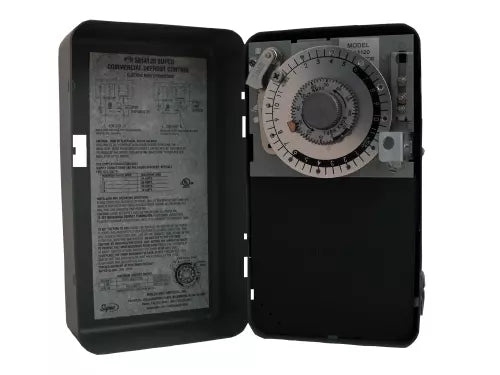

Sealed Unit Parts Co S814120 Commercial Defrost Timer

Product Description

The Sealed Unit Parts Co S814120 is a refrigeration controller designed for commercial refrigeration systems. This model supports electric heat, hot gas, and off-cycle defrost options. The adjustable defrost cycle can be set between four to one hundred ten minutes, allowing flexibility in usage. The initiation frequency can be modified from one to six times each day, making it adaptable to various operational needs. This unit operates at two hundred forty volts with a frequency of sixty hertz, and has a non-inductive amperage rating of forty amps at one hundred twenty, two hundred eight, or two hundred forty VAC.

• Adjustable defrost cycle duration from four to one hundred ten minutes.
• Supports initiation from one to six times per day.
• Constructed with a robust steel case featuring electrical knockouts.

Product Highlights

This defrost timer is suitable for commercial use and provides consistent temperature management.

Product Information

Standard Information

• Brand: Sealed Unit Parts Co
• Model: S814120

Technical Specifications

• Voltage: 240 V
• Amperage: 40A Non-Inductive at 120, 208 or 240 VAC
• Operating Temperature Range: -35°F to 175°F
• Overall Case Dimensions: 7.697 inches x 4.4 inches x 3.8 inches
• Frequency: 60Hz
• Switching: 1 Normally Open / 2 Normally Closed
