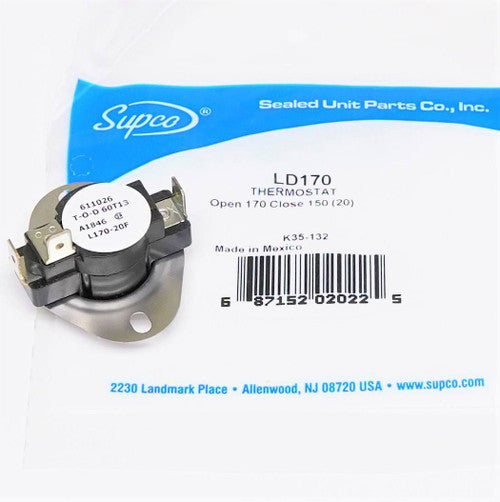

Sealed Unit Parts Co LD170-2 Limit Thermostat

Product Description

The Sealed Unit Parts Co LD170-2 limit thermostat is designed for reliable temperature control. This thermostat operates as a Single Pole Double Throw (SPDT) device that opens on rising temperatures and closes when the desired temperature differential is reached. It is equipped with 1/4 quick disconnect terminals, which facilitate easy electrical connections. The construction ensures durability and safety of current-carrying components.

• Opens at 170 degrees Fahrenheit and closes at 150 degrees Fahrenheit
• 1/4 quick disconnect terminals for easy installation
• Handles loads up to 25 amps at 240VAC

Product Highlights

This limit thermostat is part of the L Series and utilizes a 3/4 (19mm) bimetal disc for precise temperature regulation. It is ideal for HVAC applications where accurate temperature control is essential, ensuring systems operate within safe temperature ranges.

Product Information

Standard Information

• Brand: Sealed Unit Parts Co
• MPN: LD170-2

Technical Specifications

• Opens at: 170 degrees Fahrenheit
• Closes at: 150 degrees Fahrenheit
• Series: L Series
• Disc Size: 3/4 (19mm)
• Amperage: Up to 25 amps
• Voltage: 240VAC
