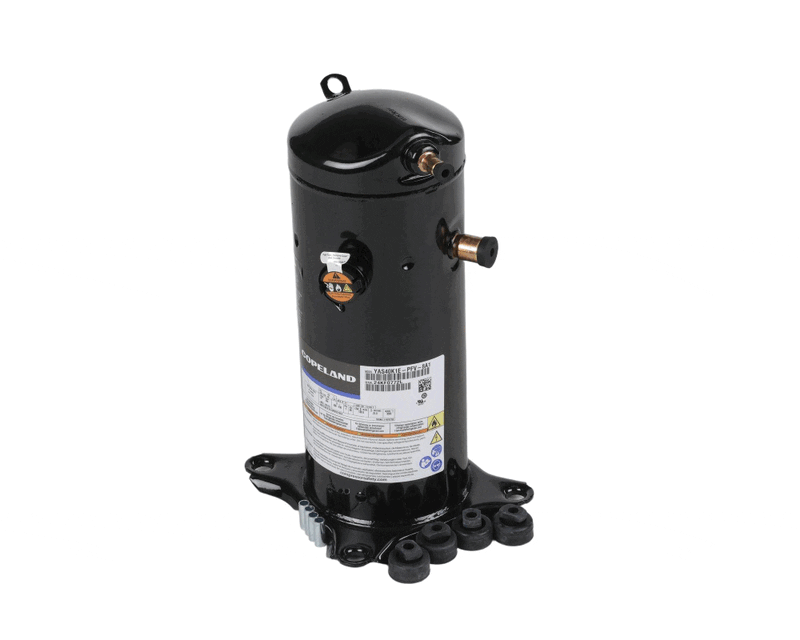

Rcd yas40k1e-pfv-8a1 Scroll Compressor 40000 Btu/h R454B

Product Description

The RCD yas40k1e-pfv-8a1 is a two-stage scroll compressor designed for residential and light-commercial air conditioning systems operating on R454B refrigerant. Rated at 40,000 BTU/h, it delivers staged cooling capacity to maintain stable indoor temperatures while supporting overall system efficiency. Running on 208-230 volts, single-phase, 60 Hz power, this compressor serves as a direct OEM-grade replacement for compatible Carrier HVAC equipment. Installation is performed by licensed HVAC technicians as part of a refrigerant-side repair or system rebuild. Dimensions are 10 inches long, 9.25 inches wide, and 17.5 inches tall.

This compressor is suited for split-system and package cooling equipment where two-stage operation is required to balance comfort and energy performance across varying load conditions. The R454B refrigerant compatibility positions it for use in current-generation equipment designed to meet lower global-warming-potential refrigerant requirements. Contractors replacing failed compressors in Carrier-platform systems will find this unit appropriate for that application when the host system is spec-matched.

Key Features

• Two-stage scroll design for capacity modulation and stable temperature control
• R454B refrigerant compatibility for current-generation low-GWP system requirements
• 40,000 BTU/h cooling capacity
• 208-230V, single-phase, 60 Hz electrical rating covers common residential panel configurations
• OEM-grade replacement engineered to original specifications
• Compact footprint: 10 inches x 9.25 inches x 17.5 inches

Compatibility

Designed as an OEM-style replacement scroll compressor for Carrier HVAC systems specifying the yas40k1e-pfv-8a1 compressor with R454B refrigerant, 208-230V single-phase power, and 40,000 BTU/h capacity. Verify system refrigerant type, voltage, and compressor mounting configuration before ordering.

Installation Notes

Scroll compressor replacement must be performed by an EPA 608-certified HVAC technician. Recover all refrigerant from the system before unbrazing or disconnecting refrigerant lines, and follow applicable local mechanical codes. De-energize and lock out the unit at the disconnect before beginning electrical or refrigerant work. Do not operate the compressor outside its rated voltage range or without confirming proper oil charge and refrigerant type compatibility with the host system.

Technical Specifications

• Compressor Type: Scroll
• Stages: 2
• Cooling Capacity: 40,000 BTU/h
• Refrigerant: R454B
• Voltage: 208-230 volts
• Phase: 1
• Frequency: 60 Hz
• Length: 10 inches
• Width: 9.25 inches
• Height: 17.5 inches

Standard Information

• Brand: RCD
• Manufacturer Part Number: yas40k1e-pfv-8a1
