Rcd p283-0293 Fan Relay 1 Pole Hvac

Product Description

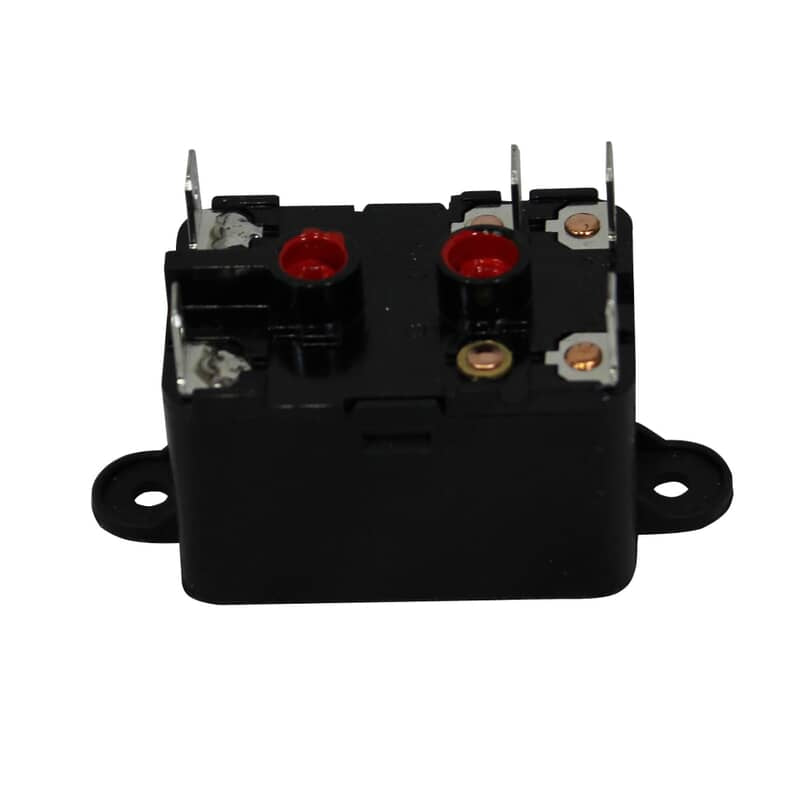

The RCD p283-0293 is a single-pole fan relay designed as an OEM-style replacement component for HVAC systems. Fan relays serve as low-voltage switching devices that control the blower or condenser fan motor circuit, allowing the control board to energize or de-energize the fan without running high-voltage current through the low-voltage control wiring. This part measures 1 inch x 1 inch x 1 inch, making it a compact relay suited for installation within standard HVAC equipment enclosures. Licensed HVAC technicians typically install this component during routine maintenance calls or system diagnostics when a failed relay is identified as the root cause of a fan circuit issue.

This fan relay is intended for use in forced-air HVAC equipment where blower or condenser fan motor control is managed through a relay switching circuit. Typical applications include residential and light commercial split systems, packaged units, and air handlers where a single-pole relay is specified for fan circuit control. The compact footprint allows it to fit in tight control board areas or relay mounting locations without modification.

Key Features

• Single-pole design for fan motor circuit switching
• Compact 1 inch x 1 inch x 1 inch form factor fits standard HVAC control enclosures
• OEM-style replacement for direct swap-out serviceability
• Designed for low-voltage control circuit integration in forced-air HVAC equipment

Compatibility

Designed as an OEM-style replacement fan relay for residential and light commercial HVAC systems requiring a single-pole relay in the fan control circuit.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all power to the unit at the breaker and verify the circuit is de-energized with a meter before beginning work. Remove the failed relay, note the existing wiring terminations before disconnecting, and install the replacement in the same orientation. Follow applicable local electrical codes and manufacturer wiring diagrams throughout the repair.

Technical Specifications

• Poles: 1
• Length: 1 inch
• Width: 1 inch
• Height: 1 inch

Standard Information

• Brand: RCD
• Manufacturer Part Number: p283-0293
