Rcd la01ra028 Fan Blade 22 Inch 3 Blade Clockwise

Product Description

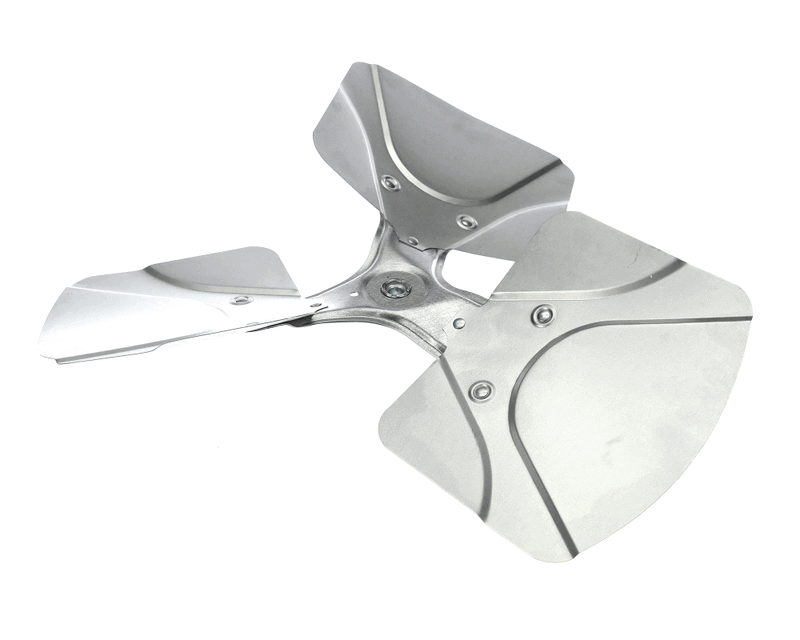

The RCD la01ra028 is a 3-blade outdoor fan blade designed as a genuine OEM-style replacement for residential and light commercial HVAC condensing units. It features a 22-inch blade diameter, a 24-degree pitch angle, and a 1/2-inch bore for direct shaft mounting. The clockwise rotation direction ensures proper airflow through the condenser coil, maintaining the heat rejection capacity the system was engineered to deliver. Licensed HVAC technicians install this part during routine condenser fan motor replacements or when blade damage is found during a seasonal inspection.

This fan blade is suited for split-system and packaged unit condensing sections that require a 22-inch, 3-blade assembly with clockwise rotation. It is listed as compatible with units including 581BTV060115AD, 581BTV060115AH, and 581BTV060115AA, among others. Verify the bore size, pitch, rotation direction, and blade count against the existing assembly before ordering to ensure a correct fit.

Key Features

• 22-inch blade diameter sized for standard residential condenser fan decks
• 3-blade configuration with a 24-degree pitch for efficient airflow volume
• 1/2-inch bore for direct mounting to common condenser fan motor shafts
• Clockwise rotation direction matches OEM airflow orientation
• Lightweight construction at 1.235 pounds for reduced motor shaft load

Compatibility

Listed compatible units include 581BTV060115AD, 581BTV060115AH, and 581BTV060115AA. Always confirm blade diameter, bore size, pitch angle, blade count, and rotation direction against the unit nameplate and existing fan assembly before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the fan guard or handling the fan assembly. Verify shaft rotation direction and blade pitch orientation before tightening the set screw to the motor shaft. Reinstall the fan guard and confirm blade clearance before returning the unit to service.

Technical Specifications

• Blade Diameter: 22 inches
• Number of Blades: 3
• Pitch Angle: 24 degrees
• Bore Size: 1/2 inch
• Rotation Direction: Clockwise
• Package Length: 23 inches
• Package Width: 23 inches
• Package Height: 6 inches
• Weight: 1.235 pounds

Standard Information

• Brand: RCD
• Manufacturer Part Number: la01ra028
