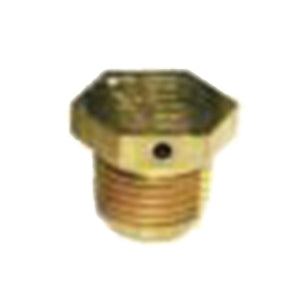

Maxitrol MA12A09 Automatic Vent Limiting Device 1/8 in

Product Description

The Maxitrol MA12A09 is an automatic vent limiting device designed to enhance gas safety in various applications. This product is essential for use with Maxitrol regulators, as it does not release gas into the atmosphere during standard operations. Ideal for indoor settings, it limits gas escapement, ensuring safety during diaphragm failures.

• Designed for use indoors only
• CSA certified for safety standards
• Compatible with 325-5A, 325-5AL, 325-5AL48, 325-5AL600 regulators

Product Highlights

The device is Green in color and made from durable brass. It connects via NPT and is rated for pressures up to 10 psi CSA. The operating temperature ranges from -40 to 200 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Maxitrol
• Manufacturer: Maxitrol

Technical Specifications

• Color: Green
• Connection Type: NPT
• Item Name: Automatic Vent Limiting Device
• Material: Brass
• Pressure Rating: 10 psi CSA
• Size: 1/8 in
• Temperature Rating: -40 to 200 deg F Ambient
• Standards/Certifications: CSA certified
• Applications: For 325-5A, 325-5AL, 325-5AL48, 325-5AL600 regulators
