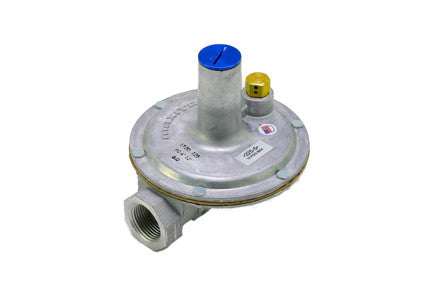

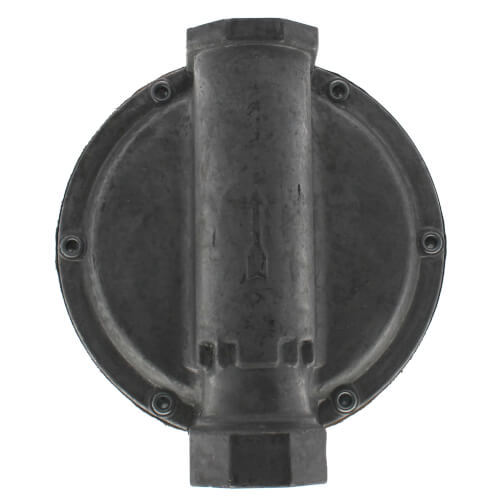

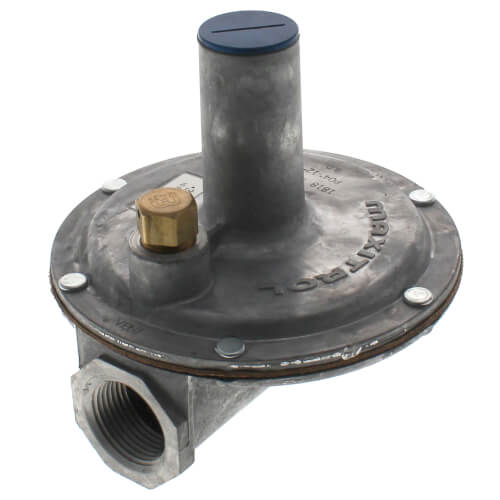

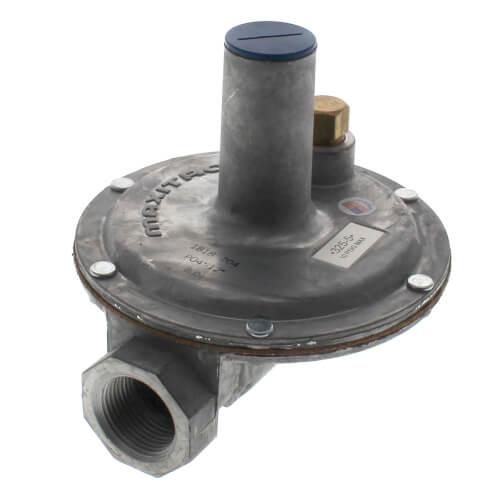

Maxitrol 325-5A-1-12A39 Gas Regulator 325,000 BTU 1 inches 12A39

Product Description

The Maxitrol 325-5A-1-12A39 is a gas regulator intended for a range of applications, including residential, commercial, and industrial setups. This unit allows for precise control from full flow to pilot flow, featuring a high leverage valve linkage assembly that ensures a secure dead-end lock-up. It is compatible with natural gas, manufactured gas, liquefied petroleum gases, and LP gas-air mixtures.

• 1 NPT connection
• 325,000 BTU capacity
• Includes a vent limiter

Product Highlights

This regulator is designed to handle a maximum inlet pressure of five PSI and offers an outlet pressure range between four and twelve inches of water column. Its construction allows use even in extreme ambient temperatures, from negative forty to two hundred five degrees Fahrenheit.

Product Information

Standard Information

• Brand: Maxitrol
• Model: 325

Technical Specifications

• Capacity (BTU): 325000
• Size: 1 inches
• Max Inlet Pressure: 5 PSI (NAT)
• Outlet Pressure: 4 - 12 inches W.C.
• Ambient Temperature Range: -40 to 205 degrees F
• Connection Type: NPT
• Batteries Required: No
• Included Components: Vent limiter for 325-5A regulators
