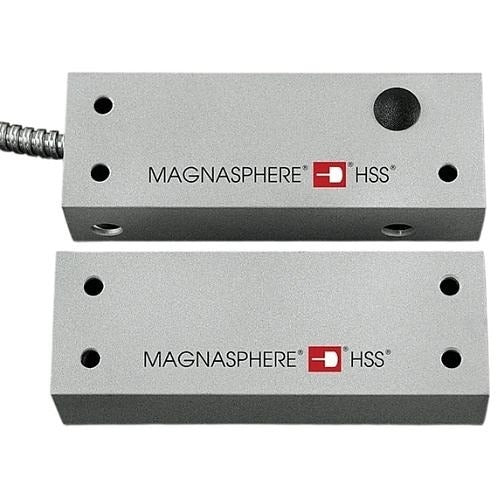

Magnasphere Corp HSS-1670-L2D-010 Overhead Door Bracket

Product Description

The MAGNASPHERE CORP HSS-1670-L2D-010 is an overhead door bracket assembly paired with an HSS special application magnetic contact. This unit is designed to monitor the open and closed position of overhead doors in commercial, industrial, and access-control installations. The bracket positions the HSS magnetic contact sensor at the door, enabling reliable status signaling to security panels and building automation systems. Installation is typically performed by licensed security, electrical, or access-control technicians familiar with door hardware and low-voltage wiring practices.

This bracket and contact assembly is suited for overhead door applications requiring a dedicated mounting solution for HSS-series magnetic contacts. Typical installations include roll-up doors, sectional overhead doors, and similar large-format door systems found in warehouses, commercial facilities, and industrial buildings. The HSS contact series is intended for special application scenarios where standard surface-mount contacts are not practical.

Key Features

• Bracket design provides dedicated mounting for HSS-series magnetic contacts on overhead doors
• Intended for special application contact installations where standard mounting is not feasible
• Sold as a single unit (each)
• Compatible with HSS L2D-010 contact hardware

Compatibility

Designed as an OEM-style mounting solution for HSS-series special application magnetic contacts used on overhead door installations. No additional specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed electrician or certified security technician. Disconnect and de-energize all associated low-voltage control circuits before mounting or wiring the contact assembly. Follow applicable NEC guidelines for low-voltage wiring and any local building codes governing access-control or security system installations. Verify proper door clearance and bracket alignment before securing the assembly to ensure reliable contact operation through the full range of door travel.
