Icp eaa5x30m14a Uncased Vertical Evaporator Coil 2.5T

Product Description

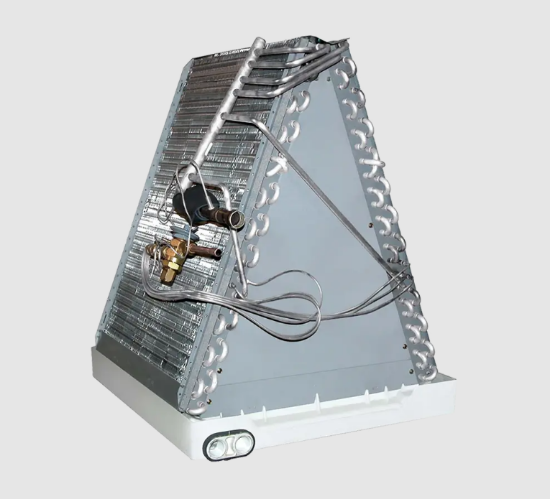

The ICP eaa5x30m14a is an uncased vertical A-style evaporator coil designed for residential split-system air conditioning and heat pump applications. Rated at 30,000 BTU/h and sized for 2.5-ton systems, it operates with R-454B refrigerant, an A2L low-GWP refrigerant increasingly specified in new residential HVAC installations. The coil features an aluminum construction and mounts vertically in an uncased configuration, making it suitable for installation inside a matching air handler or furnace cabinet. Licensed HVAC technicians are the intended installers for this component.

The eaa5x30m14a fits vertical installation scenarios where an uncased coil is matched to a compatible air handler or furnace blower cabinet. Its 2.5-ton capacity suits typical residential applications in small-to-medium square footage homes. The EAA5X series designation indicates the product family lineage within ICP's evaporator coil lineup. This coil is intended for use in systems charged with R-454B refrigerant and is confirmed A2L compatible, aligning with current and upcoming refrigerant transition requirements in the HVAC industry.

Key Features

• R-454B compatible — A2L refrigerant ready for current and transitional residential systems
• 2.5-ton capacity rated at 30,000 BTU/h for small-to-medium residential cooling loads
• Uncased vertical configuration installs inside existing air handler or furnace cabinet
• Aluminum coil construction for corrosion resistance and efficient heat transfer
• EAA5X series design suits standard residential split-system installations

Compatibility

Designed as an OEM-style uncased vertical evaporator coil for residential split-system air conditioning and heat pump applications using R-454B refrigerant.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification, as this coil operates with R-454B, an A2L classified refrigerant requiring specific handling procedures. Shut down and lock out the system electrically and ensure refrigerant is properly recovered before disturbing any refrigerant circuit connections. Follow local mechanical codes and the equipment manufacturer's installation instructions for coil placement, drain pan connection, and cabinet sealing. A2L refrigerant systems require attention to ignition source management and ventilation per current ASHRAE and local code requirements.

Technical Specifications

• Product Type: Evaporator Coil
• Capacity: 30,000 BTU/h (2.5 Tons)
• Refrigerant: R-454B
• A2L Compatible: Yes
• Coil Type: Uncased
• Configuration: Vertical
• Style Name: EAA5X
• Width: 20 inches
• Depth: 16.25 inches
• Height: 22 inches

Standard Information

• Brand: ICP
• Manufacturer Part Number: eaa5x30m14a
