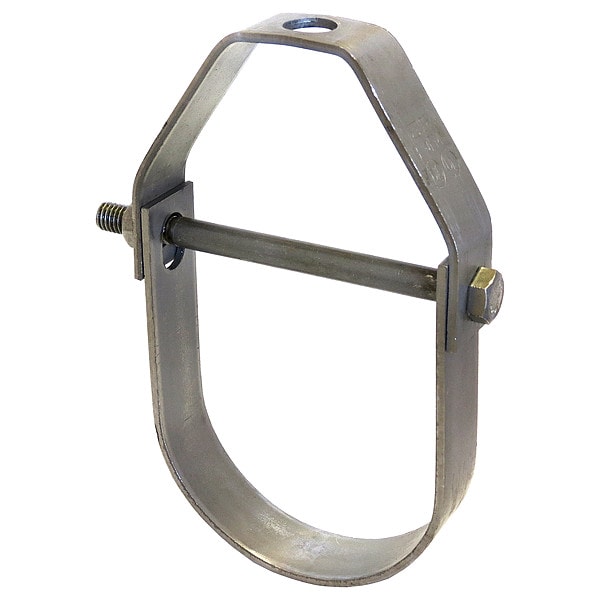

Hangers 500173158 Clevis Hanger 17.938in Steel 12in Pipe

Product Description

The HANGERS 500173158 is a heavy-duty steel clevis hanger designed to support 12-inch pipe in mechanical and plumbing piping systems. This uncushioned hanger accommodates a 7/8-inch threaded rod and delivers a load capacity of 3,800 pounds, making it well suited for large-diameter pipe runs in commercial and industrial installations. The clevis design allows the pipe to seat securely while the hanger transfers load to overhead structural support via the threaded rod. Licensed plumbers, pipefitters, and mechanical contractors are the primary installers of this type of hardware.

This clevis hanger is used in commercial and industrial piping applications where large-diameter pipe must be suspended from overhead structure. It is appropriate for use in mechanical rooms, plant facilities, and building piping distribution systems carrying 12-inch pipe. The 7/8-inch threaded rod connection is standard for high-load suspension points. The steel construction without cushioning is typical for rigid pipe systems where vibration isolation is not required.

Key Features

• Supports 12-inch pipe with a rated load capacity of 3,800 pounds
• Accepts 7/8-inch threaded rod for overhead suspension
• Overall height of 17.938 inches for standard clearance in large-diameter pipe hangers
• Steel construction for strength and durability in commercial and industrial environments
• Uncushioned design suited for rigid pipe systems
• Manufactured in the United States

Compatibility

Designed as an OEM-style clevis hanger for 12-inch pipe systems using 7/8-inch threaded rod suspension in commercial and industrial mechanical piping installations.

Installation Notes

Installation is typically performed by licensed pipefitters or plumbers in accordance with applicable mechanical codes such as the International Mechanical Code or ASME B31 piping standards. Support spacing and rod sizing should comply with the project specifications and local authority having jurisdiction. Ensure the overhead structural attachment point is rated for the full suspended pipe load, including pipe weight, fluid weight, and any applicable dynamic loads. Do not exceed the rated load capacity of 3,800 pounds for this hanger.

Technical Specifications

• Pipe Size: 12 inches
• Threaded Rod Size: 7/8 inch
• Load Capacity: 3,800 pounds
• Overall Height: 17.938 inches
• Hanger Type: Clevis
• Material: Steel
• Cushioned: No
• Country of Origin: United States

Standard Information

• Brand: HANGERS
• Manufacturer Part Number: 500173158
