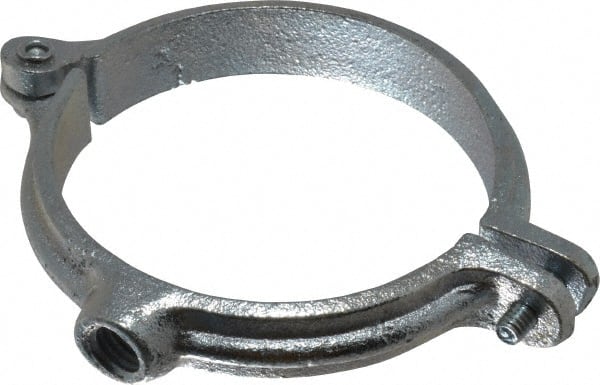

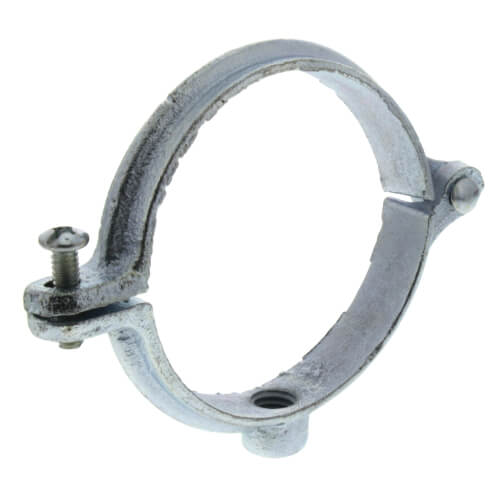

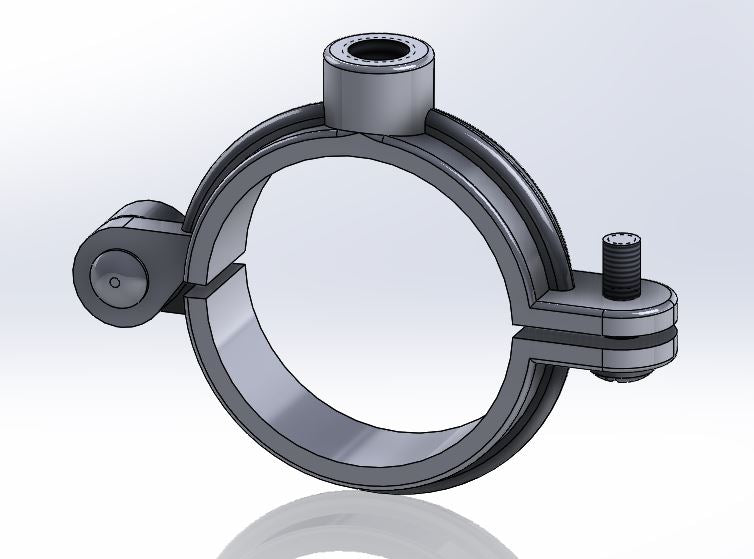

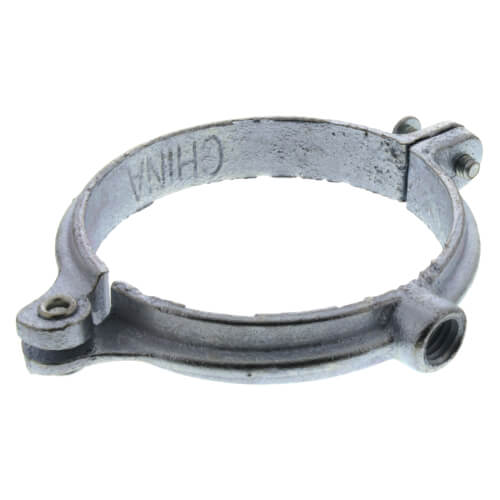

HANGERS 41HG0300 3-inch Electro-Galvanized Split Ring Hanger

Product Description

The HANGERS 41HG0300 is a 3-inch split ring hanger made for supporting stationary pipe lines. It is made from malleable iron and features an electro-galvanized finish for durability. This hanger is designed for both horizontal and vertical installations, accommodating a 1/2-inch rod and suitable for pipes with a 3.5-inch outside diameter.

• Accommodates 1/2-inch rod for easy installation.
• Constructed from durable malleable iron.
• Meets various federal specifications for quality assurance.

Product Highlights

This product is built for rigorous support needs in piping systems. It provides a reliable solution for suspending pipes effectively.

Product Information

Standard Information

• Brand: HANGERS
• MPN: 41HG0300

Technical Specifications

• Product Type: Split Ring Hanger
• Material: Malleable Iron
• Rod Size: 1/2 inch
• Nominal Pipe Size: 3
• Load Capacity: 300 lbs
• Finish: Electro-Galvanized
• Pipe Outside Diameter: 3.5000 inches
• Pipe Size: 3.5 (O.D)
• Max Load: 300 lbs
• Rod Diameter: 1/2 inch
• Threaded Rod Size: 1/2-13
• Approximate Weight: 0.713 lbs
