HANGERS 41CT0075 3/4-Inch Copper Gard Split Ring Hanger

Product Description

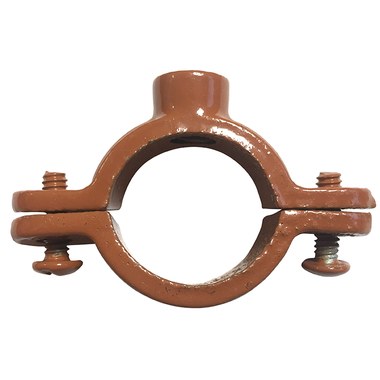

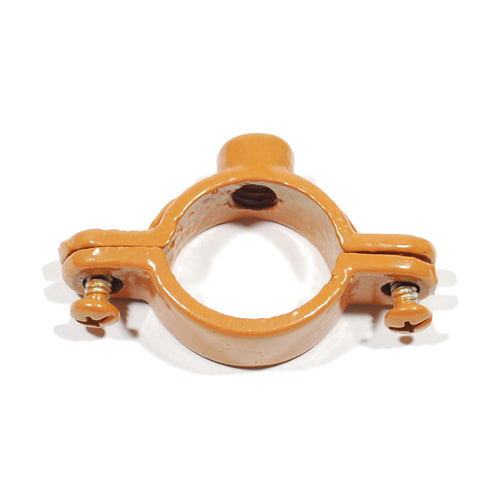

The HANGERS 41CT0075 is a split ring extension hanger suitable for suspending stationary copper tubing. It is built with Copper Gard material and has a copper epoxy coating, which provides resistance to corrosion. The split ring design allows for easy attachment to various components, making it versatile for both horizontal and vertical installations.

• Constructed for the suspension of non-insulated stationary copper tubing.
• Compatible with horizontal and vertical setups.
• Split ring design simplifies attachment processes.

Product Highlights

The product is ideal for trade professionals working with copper tubing installations.

Product Information

Standard Information

• Brand: Hangers
• MPN: 41CT0075

Technical Specifications

• Type: Split Hanger
• Tube Size: 3/4 inches
• Material: Copper Gard
• Finish: Copper epoxy coated
• Screw: 10 - 24
• A: 3/8 - 16 inches
• B: 13/16 inches
• C: 2 1/4 inches
• D: 1 3/8 inches
• Details: Import
