HANGERS 41B0100 Split Ring Hanger 1 in IPS

Product Description

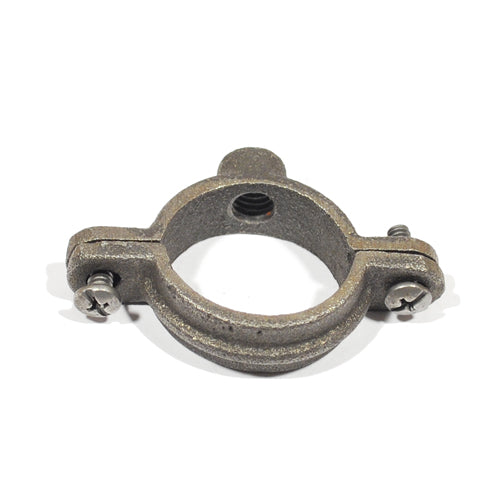

The HANGERS 41B0100 is a split ring hanger designed to support non-insulated stationary copper tubing in either horizontal or vertical applications. This hanger fits a one-inch IPS pipe and is made from durable malleable iron with a plain finish. It has a rod size of three-eighths by sixteen, allowing secure installation. The product can hold up to one hundred eighty pounds, making it reliable for various plumbing tasks.

• Supports non-insulated stationary copper tubing.
• Accommodates one-inch IPS pipe or tube.
• Constructed from malleable iron for strength.

Product Highlights

The HANGERS 41B0100 offers robust support and secure installation for copper tubing in plumbing and HVAC applications.

Product Information

Standard Information

• Brand: HANGERS
• Type: Split Ring Hanger

Technical Specifications

• Series: 41 Series
• Pipe/Tube Size: 1 in IPS
• Rod Size: 3/8-16
• Load Capacity: 180 lb
• Length: 2-3/4 in
• Material: Malleable Iron
• Finish: Plain
• Screw Size: 10 - 24
• A (In.): 3/8 - 16
• B (In.): 1 1/8
• C (In.): 2 3/4
• D (In.): 2
