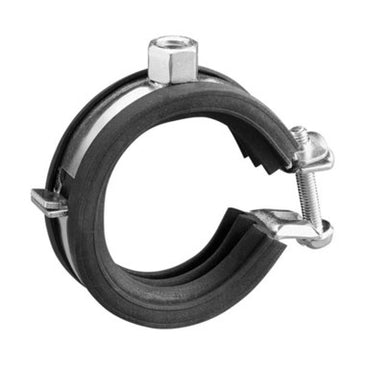

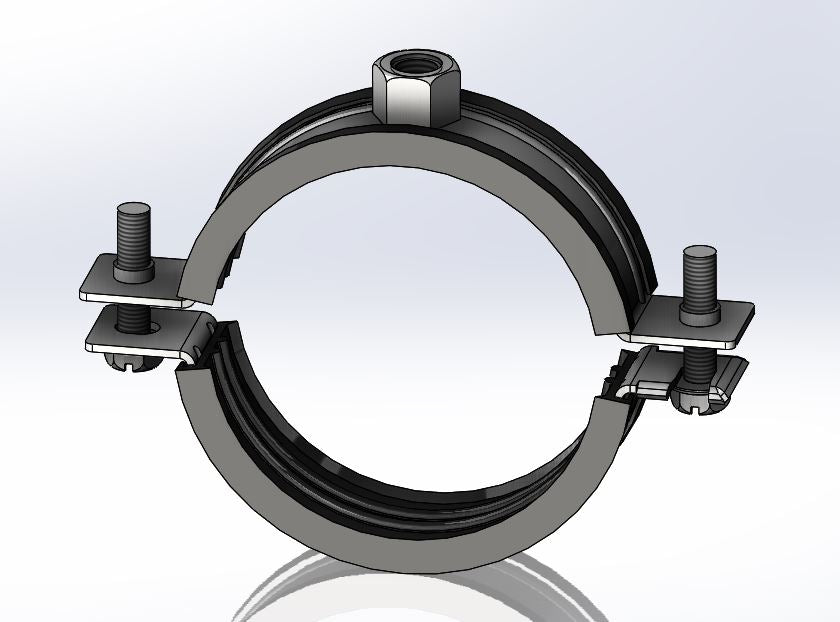

HANGERS 40HS0005 Split Ring Hanger

Product Description

The HANGERS 40HS0005 split ring hanger is built for the support of stationary, non-insulated piping systems. Made from electro galvanized steel, this hanger provides both strength and resistance to corrosion. It supports pipe sizes of three-fourths inch IPS or one inch copper tube. Operating effectively in temperatures ranging from negative fifty-eight to two hundred thirty degrees Fahrenheit, it adheres to MSS SP-58 and SP-69 standards. This model features a rod diameter of three-eighths inch and can handle a load of up to one hundred eighty pounds.

• Designed for suspension of stationary non-insulated pipe lines.
• Constructed from durable electro galvanized steel.
• Suitable for various pipe sizes including three-fourths inch IPS and one-inch copper.

Product Highlights

This hanger is ideal for use in HVAC, plumbing, and mechanical applications where reliable suspension of piping is required.

Product Information

Standard Information

• MPN: 40HS0005
• Brand: Hangers

Technical Specifications

• Application: Suspension of stationary non-insulated pipe lines
• Material: Electro galvanized steel
• Size: Three-fourths inch
• Tube size: One inch
• Standards met: MSS SP-58 and SP-69
• Temperature range: Negative fifty-eight to two hundred thirty degrees Fahrenheit
• Finish: Electro-galvanized
• Rod diameter: Three-eighths inch
• Style: Split ring
• Threaded rod size: Three-eighths - sixteen
• Load rating: One hundred eighty pounds
• Maximum pipe size: One and three thirty-seconds inch
• Minimum pipe size: One and one thirty-second inch
• Pipe size: Zero point six seven five inches (O.D)
• Product type: Cushioned
