Hangers 150m0200eg 2 Inch Plated U-bolt 4 Nuts

Product Description

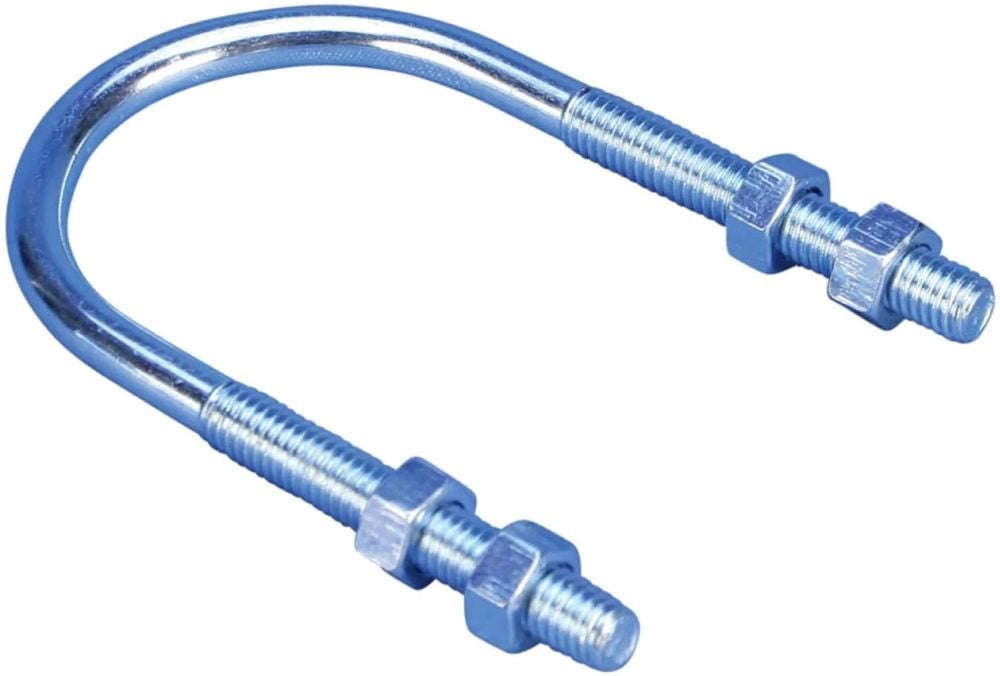

The HANGERS 150m0200eg is a round bend U-bolt designed for pipe hanging and support applications. It features a 2-inch inside width and ships complete with four nuts for a ready-to-install assembly. The electrogalvanized zinc-plated finish provides corrosion resistance suited to mechanical rooms, utility spaces, and exposed pipe runs. Manufactured to MSS SP-69 Type 24 and WW-H-171E Type 24 standards, this U-bolt meets recognized industry benchmarks for pipe hanger hardware. It is a standard hardware item installed by plumbers, pipefitters, and mechanical contractors in both new construction and retrofit work.

This U-bolt is used in pipe support and suspension assemblies where a round bend profile is required. The 2-inch inside width accommodates 2-inch nominal pipe and is appropriate for residential and light commercial mechanical systems. The four included nuts allow for double-nut locking on threaded rod or structural attachments, which is common practice in supported piping installations. The electrogalvanized finish makes it suitable for interior dry or semi-exposed environments.

Key Features

• Round bend U-bolt profile with 2-inch inside width
• Includes four nuts for double-nut locking capability
• Electrogalvanized zinc-plated finish for corrosion resistance
• Meets MSS SP-69 Type 24 and WW-H-171E Type 24 standards
• Sold individually; nominal weight 0.35 pounds per piece based on 35 pounds per 100 pieces

Compatibility

Designed as an OEM-style replacement or new-install component for pipe hanger and support assemblies using 2-inch nominal pipe in residential and commercial mechanical systems.

Installation Notes

Installation is typically performed by licensed plumbers or pipefitters following applicable mechanical and plumbing codes. Shut off and depressurize any pipe section before modifying or repositioning supports. Verify that the threaded rod or structural attachment point is rated for the load before tightening. Use both nuts in a double-nut configuration to prevent loosening under vibration or thermal movement.

Technical Specifications

• Inside Width: 2 inches
• Bend Type: Round bend
• Nuts Included: 4
• Finish: Electrogalvanized zinc plated
• Applicable Standards: MSS SP-69 Type 24, WW-H-171E Type 24
• Weight (per 100 pieces): 35 pounds

Standard Information

• Brand: HANGERS
• Manufacturer Part Number: 150m0200eg
