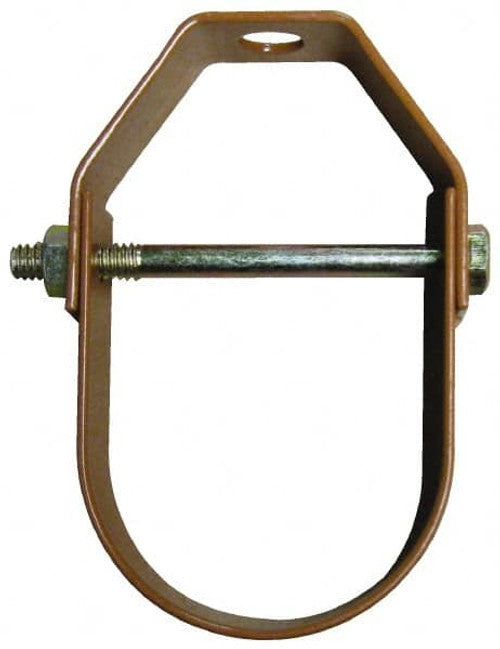

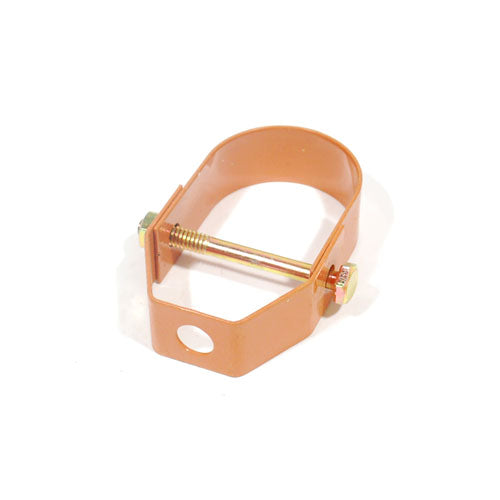

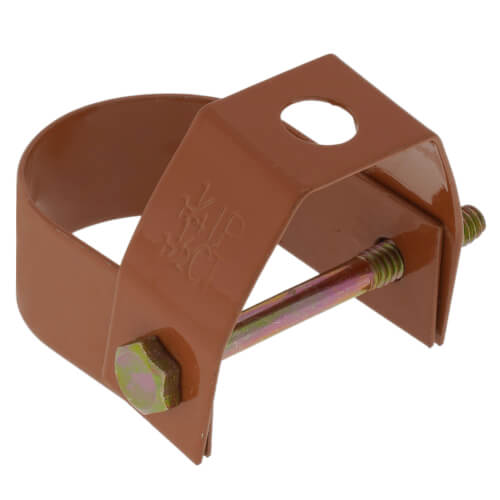

HANGERS 110CTI0150 Clevis Hanger 1-1/2 In Carbon Steel Copper Epoxy Coated

Product Description

The HANGERS 110CTI0150 is a clevis hanger designed for suspending stationary copper tubing. This product is constructed from carbon steel with a copper epoxy coating, making it durable for various applications. It is suitable for use with one and five-eighths inch OD pipe and accommodates a three-eighths inch rod. A quarter-inch bolt is included for easy installation.

• Designed for suspension of stationary copper tubing
• Constructed from carbon steel with a copper epoxy coating
• Meets Federal Specifications WW-H-171-E, A-A-1192 A, and MSS SP-58 and SP-69

Product Highlights

The HANGERS 110CTI0150 provides a reliable solution for supporting copper tubing in various installations.

Product Information

Standard Information

• Product Type: Adjustable Clevis Hanger
• UPC: 663027000912

Technical Specifications

• Type: Clevis Hanger
• Figure: 110CTI
• Pipe Size: 1-1/2 in
• Material: Carbon Steel
• Finish: Copper Epoxy Coated
• Length: 3.25 in
• Load Capacity: 250 lb
• Rod Size: 3/8 in
• Series: FIG 110CTI
• Suitable For Use With: 1-5/8 in OD Pipe
