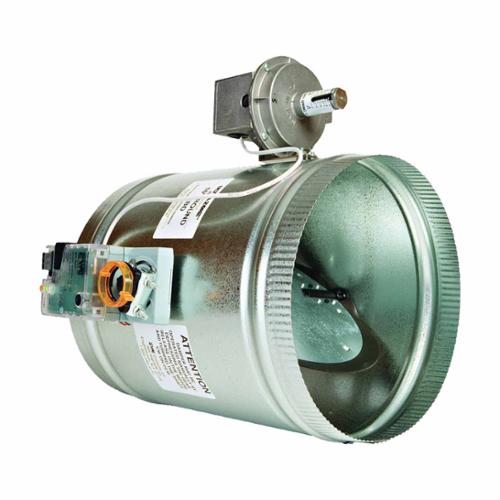

Ewc Controls EBD16 Ebd 16 Inch Round Electronic Static Pressure Bypass Damper

Product Description

The EWC CONTROLS EBD16 is a 16-inch round electronic static pressure bypass damper fabricated from 24 gauge galvanized steel. The rolled shells are furnished with one straight (female) end and one crimped (male) end with stiffening beads for rigidity. It is equipped with low leakage blade seals. The pressure switch monitors the duct static pressure.

• Fabricated from 24 gauge galvanized steel
• Rolled shells furnished with one straight (female) end and one crimped (male) end with stiffening beads for rigidity
• Equipped with low leakage blade seals

Product Highlights

This round EWC CONTROLS bypass damper features a pressure switch to monitor duct static pressure and maintain the design static pressure value.

Product Information

Standard Information

• Brand: EWC CONTROLS
• Manufacturer Part Number: EBD16

Technical Specifications

• Item Number: 16 EBD
• Brand: EWC Controls
• Motorized: Yes
• Shape: Round
• Size (in): 16
• Spring Return: Non-Spring Return
• Type: Bypass Dampers
• Model: EBD
• Blade Type: Parallel
• Material: 24 ga Steel
• Finish: Galvanized
• Motor Specifications: 24 VAC, 3 VA
• Pressure Rating: 0.1 to 4 in-WC
