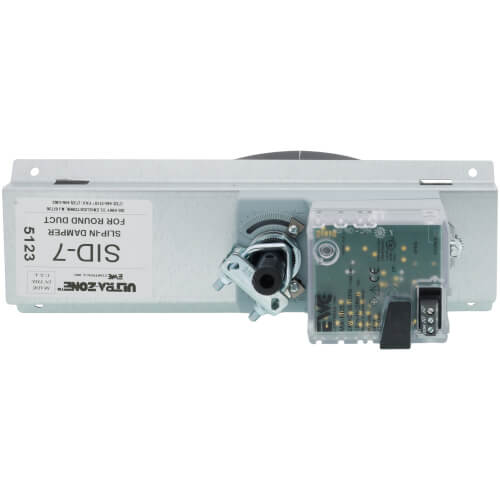

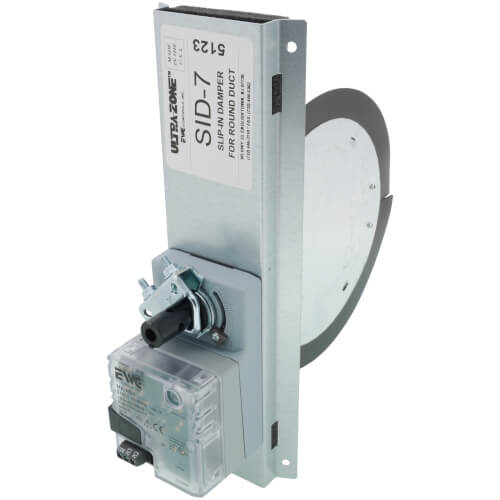

EWC Controls 7SID Sid Motorized Slip-In-Damper 24V

Product Description

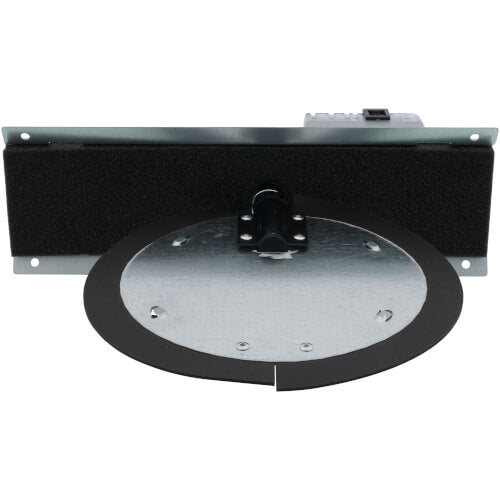

The EWC CONTROLS 7SID is a seven-inch slip-in damper designed for easy installation in existing ductwork. This round motorized damper allows for quick and efficient retrofit applications, making it ideal for HVAC upgrades. It fits into a one and a quarter-inch slot in round ducts and features a double-layer blade design with an integrated sealing gasket.

• Easy to install and wire.
• Includes a UL Listed 24V three-wire power actuator rated at eighteen inch pounds of torque.
• Features adjustable end-stops for minimum and maximum position settings along with LEDs for visual status indication.

Product Highlights

This product enhances air quality control within HVAC systems while reducing energy loss.

Product Information

Standard Information

• Product Type: Slip-In-Damper
• Application: Air Quality

Technical Specifications

• Size: Seven inches
• Voltage: 24 VAC
• Shape: Round
• Motorized: Yes
• Ambient Temperature Range: -20°F to 160°F
• Maximum Temperature: 185°F
• Materials: Galvanized Steel
• Approvals: UL Listed
