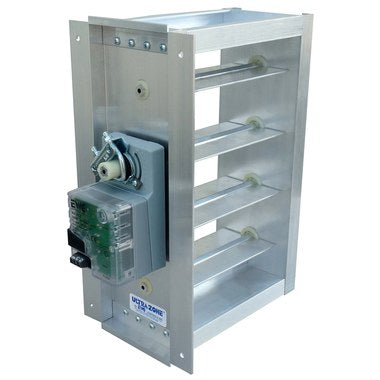

EWC CONTROLS 10X18BMND Damper Ultra-Zone ND Motorized Opposed Blade 10 x 18 Inch Bottom Mount

Product Description

The EWC CONTROLS 10X18BMND is a motorized damper designed for HVAC zoning applications. This rectangular damper features a robust extruded aluminum frame and overlapping blades for effective airflow management. It utilizes nylon bearings for quiet operation and includes a UL-listed motor actuator, providing eighteen inch-pounds of torque. The unit is capable of withstanding pressures up to 1.5 inches of water column and duct velocities up to 1500 feet per minute. It also has an end-stop adjustment to manage air leakage when closed.

• Constructed from heavy-duty 0.80 extruded aluminum.
• Features nylon bearings for silent functionality.
• Operates reliably under pressure and high-speed airflow conditions.

Product Highlights

This product is essential for controlling zoning in HVAC systems and optimizes efficiency through effective air management.

Product Information

Standard Information

• Product Type: Motorized Opposed Blade
• Size: ten inches x eighteen inches

Technical Specifications

• Motor Mounting: Bottom
• Actuator: UL Listed Motor Actuator
• Torque: eighteen inch-pounds
• Power: twenty-four VAC, three wire power open/power close or floating function
• Material: Heavy Duty 0.80 extruded aluminum
