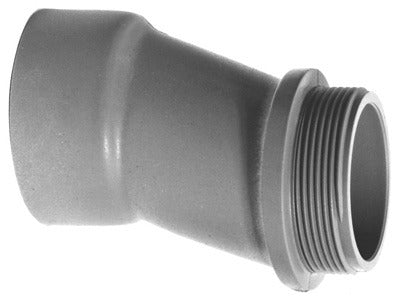

Abb Installation Products E995GR Pvc Meter Offset

Product Description

The ABB INSTALLATION PRODUCTS E995GR is a 1-1/4 inch Schedule 40 PVC meter offset fitting designed to bring electrical service conductors into a meter box. The 30-degree offset angle accommodates the angular transition required at utility meter enclosures, allowing conduit runs to align cleanly with the meter socket entry. One end is socketed for solvent-weld connection to Schedule 40 PVC conduit, while the offset end is threaded for direct connection to a meter box hub. Licensed electricians install this fitting as part of the service entrance conduit assembly.

This fitting is used in residential and light commercial electrical service entrance applications where the incoming underground or overhead conduit must be routed into a meter base enclosure. The 30-degree angle and combination socket-and-thread design make it suitable for installations where a straight conduit run would not align with the meter socket knockout. It is a direct-to-meter-box transition piece installed before the service conductors are pulled.

Key Features

• 30-degree offset angle routes conduit into meter box enclosures cleanly
• Socket end accepts solvent-weld connection to Schedule 40 PVC conduit
• Threaded offset end connects directly to standard meter box hubs
• Schedule 40 PVC construction suitable for service entrance conduit systems
• 1-1/4 inch trade size accommodates standard service entrance conductor bundles

Compatibility

Designed as an OEM-style replacement fitting for 1-1/4 inch Schedule 40 PVC service entrance conduit systems at residential and light commercial meter enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the utility service and verify with the utility provider before working on service entrance conduit. Use appropriate PVC solvent cement on the socket end and ensure full thread engagement on the meter box hub end. Do not force alignment — select the correct offset angle for the specific meter enclosure geometry.

Technical Specifications

• Trade Size: 1-1/4 inches
• Offset Angle: 30 degrees
• Schedule: Schedule 40
• Material: PVC
• Connection Type: Socket one end, threaded offset end
• Weight: 0.71 pounds
• Package Quantity: 3 per package

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: E995GR
