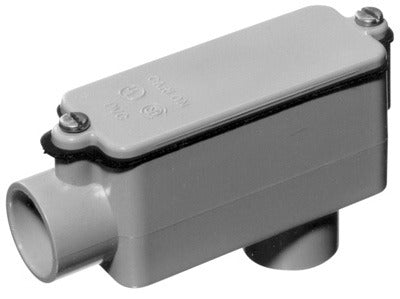

Abb Installation Products E986GR Type Lb Pvc Access Fitting

Product Description

The ABB INSTALLATION PRODUCTS E986GR is a Type LB PVC access fitting designed for use in conduit systems where a 90-degree pull point is needed at an exterior wall or other transition location. Built from PVC, this fitting provides a lightweight, corrosion-resistant solution for routing conductors through a change of direction while maintaining a removable cover for wire pulling and future access. At 1.25 inches trade size, it fits standard Schedule 40 and Schedule 80 PVC conduit runs. Electrical contractors and conduit installers rely on this type of fitting when making exterior wall entries or transitioning from underground to above-ground conduit runs.

The E986GR is suited for residential and light commercial electrical installations where PVC conduit systems are specified. Typical applications include service entrances, meter socket feeds, exterior wall penetrations, and underground-to-exposed conduit transitions. The Type LB body style allows conductors to enter from the back and exit through the bottom, making it a standard choice for wall entry points. It is sold in a package quantity of 6 units per carton.

Key Features

• Type LB configuration provides a 90-degree pull point with bottom exit for wall entry applications
• PVC construction offers corrosion resistance and lightweight handling
• 1.25-inch trade size fits standard PVC conduit systems
• Removable cover plate allows conductor pulling and future wire access
• Packaged in quantities of 6 units per carton for jobsite efficiency

Compatibility

Designed as an OEM-style replacement and standard-fit access fitting for 1.25-inch PVC conduit systems in residential and light commercial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify lockout/tagout procedures before working on any connected conduit system. Solvent-cement the fitting to PVC conduit using the appropriate primer and cement for the conduit schedule in use. Do not over-stress the fitting body when routing conductors, and ensure the cover is secured after wire pulling is complete.

Technical Specifications

• Trade Size: 1.25 inches
• Fitting Type: Type LB
• Material: PVC
• Package Quantity: 6 units
• Weight: 5.47 pounds

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: E986GR
