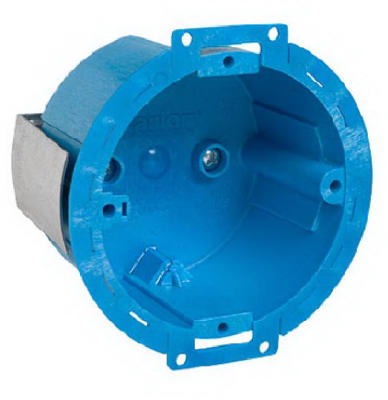

Abb Installation Products BH614R Round Ceiling Box

Product Description

The ABB INSTALLATION PRODUCTS BH614R is a rigid, round electrical ceiling box rated for 14 cubic inches (CUIN) of capacity and measuring 3 inches in diameter. Built to resist flexing, this box holds its shape under demanding job-site conditions, making it a reliable choice for new construction and retrofit ceiling fixture installations. The spring clamp design simplifies cable securing, and break-away edges allow it to fit smaller fixtures without modification. Licensed electricians install this box in ceiling assemblies where a durable, code-compliant enclosure is required for lighting and fan mounting applications.

The BH614R is suited for residential and light commercial ceiling installations where a round electrical box is specified. Its 10-pound fixture rating accommodates standard ceiling light fixtures. The break-away edge feature provides flexibility for use with compact fixture canopies, reducing the need for additional adapters or trim work on the job.

Key Features

• 14 CUIN capacity supports standard wiring configurations within NEC fill requirements
• Rigid construction resists flexing and maintains box shape under load and during installation
• New spring clamp design for fast, secure cable retention without additional clamp hardware
• Break-away edges allow compatibility with smaller fixture bases
• 10-pound fixture rating for ceiling-mounted light fixtures
• Sold in a package quantity of 24 units per UoM

Compatibility

Designed as an OEM-style replacement and new-installation round ceiling box for residential and light commercial electrical ceiling fixture applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify the absence of voltage before working in the enclosure. Ensure the box is properly secured to framing or a listed mounting bracket rated for the intended fixture weight. Do not exceed the 10-pound fixture rating stamped on the box.

Technical Specifications

• Box Shape: Round
• Diameter: 3 inches
• Volume Capacity: 14 CUIN
• Fixture Rating: 10 pounds
• Construction: Rigid
• Weight (package): 8.18 pounds
• Package Quantity: 24 EA

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: BH614R
