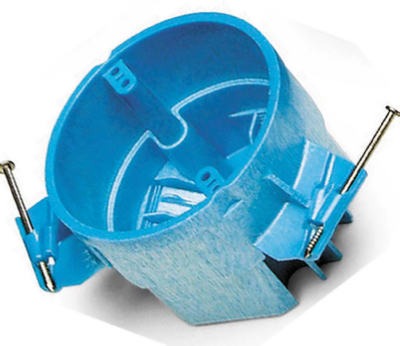

Abb Installation Products BH525A-UPC Ceiling New Work Box 25 Cu in

Product Description

The ABB INSTALLATION PRODUCTS BH525A-UPC is a ceiling new-work electrical box rated at 25 cubic inches, designed for installation in new construction framing before drywall or ceiling material is applied. Built from a hard-body super blue thermoplastic compound, this box resists flexing and holds its shape under mechanical stress during rough-in. Integral cable clamps are molded directly into the box, eliminating the need for separate metal clamps and screws. Electricians use this box for ceiling fixture rough-in in residential and light commercial applications.

This box is intended for new-work ceiling installations where the box is secured to framing members prior to finishing. The 25 cubic inch capacity accommodates standard ceiling fixture wiring and meets NEC box-fill calculation requirements for typical fixture loads. The integral clamp design speeds rough-in by removing the step of installing separate metal knock-out clamps. It is suited for wood-frame residential construction and light commercial framing.

Key Features

• 25 cubic inch interior capacity for NEC-compliant box-fill calculations
• Hard-body super blue thermoplastic construction resists flexing and deformation
• Integral molded cable clamps eliminate the need for separate metal clamps or screws
• New-work design mounts directly to framing before ceiling material is applied
• Sold in a package quantity of 48 boxes per unit of measure

Compatibility

Designed as an OEM-style new-work ceiling electrical box suitable for standard residential and light commercial framing applications where a 25 cubic inch ceiling box is specified.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC). Power to the circuit must be confirmed off at the breaker before making any wiring connections. The box should be secured to framing per manufacturer mounting requirements before ceiling finish material is applied. Do not exceed the box-fill capacity calculated per NEC Article 314.

Technical Specifications

• Box Capacity: 25 cubic inches
• Construction: Hard-body thermoplastic
• Clamp Type: Integral molded cable clamps
• Application: Ceiling new work
• Package Quantity: 48 per package
• Package Weight: 19.5 pounds

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: BH525A-UPC
