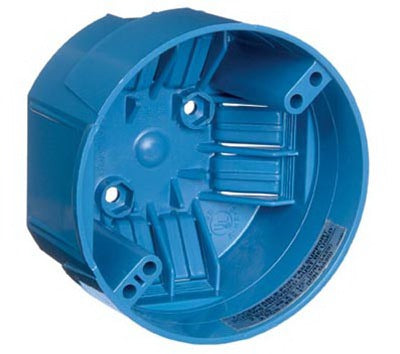

Abb Installation Products B720R-SHK Ceiling Fan Outlet Box

Product Description

The ABB INSTALLATION PRODUCTS B720R-SHK is a PVC ceiling fan outlet box designed for direct mounting to an existing ceiling joist. With a 4-inch diameter and 2.25-inch depth, this box provides 20 cubic inches of capacity and includes 6 integral clamps for secure wire management. Rated to support fan weights up to 35 pounds and fixture weights up to 50 pounds, it is built for residential ceiling fan and light fixture installations. Electricians and qualified installers use this box in standard ceiling joist applications where a non-conductive, non-corrosive mounting solution is required.

This outlet box is suited for residential ceiling fan and lighting fixture installations. It mounts directly to an existing ceiling joist without the need for additional brackets or hardware in typical applications. The PVC construction keeps the box lightweight and resistant to corrosion, making it a practical choice in environments where moisture or condensation may be a concern. The 6 integral clamps accommodate multiple cable entries and help maintain a clean, code-compliant installation.

Key Features

• 20 cubic inch interior capacity for adequate wire management
• 4-inch diameter by 2.25-inch depth form factor fits standard ceiling openings
• 6 integral clamps for secure, organized cable entry
• Rated for ceiling fan weights up to 35 pounds
• Rated for fixture weights up to 50 pounds
• PVC construction — non-conductive, non-corrosive, and lightweight

Compatibility

Designed as an OEM-style replacement or new-construction ceiling fan outlet box for residential applications where direct joist mounting is required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Shut off circuit power at the breaker before beginning work and verify the absence of voltage with a meter before handling wiring. Confirm the ceiling joist is structurally sound and capable of supporting the rated load before securing the box. Do not exceed the published fan or fixture weight ratings.

Technical Specifications

• Box Capacity: 20 cubic inches
• Diameter: 4 inches
• Depth: 2.25 inches
• Fan Weight Rating: 35 pounds
• Fixture Weight Rating: 50 pounds
• Integral Clamps: 6
• Material: PVC
• Weight: 1.62 pounds
• Package Quantity: 6 per package

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: B720R-SHK
