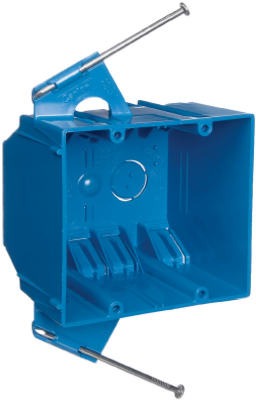

Abb Installation Products B232ACP 2-gang Switch Outlet Box

Product Description

The ABB INSTALLATION PRODUCTS B232ACP is a 2-gang new work switch and outlet box designed for residential and light commercial rough-in electrical work. Molded from blue PVC, this box provides a 32 cubic inch interior volume to meet NEC fill capacity requirements for multiple conductors and devices. It ships in a package quantity of 50 units, making it a practical choice for volume installations. The box measures 3.75 inches wide by 4 inches tall by 3 inches deep and is equipped with 2 captive nails for fast mounting to wood framing. Eight integral cable clamps, 4 on each side, secure NM or similar sheathed cable without separate clamps.

This box is suited for new construction rough-in applications where walls are open and framing is accessible. Electricians nail it directly to wall studs before drywall installation. The leveling guides molded into the box help position the box flush with the finished wall surface, reducing callbacks and trim adjustments. Typical uses include switch and receptacle locations in residential framing, multi-unit residential builds, and light commercial wood-frame construction.

Key Features

• 32 cubic inch interior volume meets NEC conductor fill requirements for 2-gang device installations
• 2 captive nails allow direct attachment to wood studs without separate fasteners
• 8 integral cable clamps, 4 per side, secure sheathed cable entries without add-on hardware
• Blue PVC construction resists corrosion and moisture in new work environments
• Molded leveling guides support accurate flush-mount alignment with finished wall surface
• Sold in a package quantity of 50 units for volume rough-in applications

Compatibility

Designed as an OEM-style new work electrical box for use with standard 2-gang switch and receptacle devices in wood-frame new construction installations.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize any nearby circuits before running cable into the box. Nail the box to the face of the stud so the front edge will be flush with the finished drywall surface using the molded leveling guides as a reference. Do not over-drive the captive nails, as distortion of the box can affect device mounting and wall plate fit.

Technical Specifications

• Gang Count: 2
• Interior Volume: 32 cubic inches
• Dimensions: 3.75 inches x 4 inches x 3 inches deep
• Material: PVC
• Color: Blue
• Mounting: 2 captive nails
• Cable Clamps: 8 integral clamps, 4 per side
• Weight: 15.38 pounds (per package of 50)
• Package Quantity: 50 units

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: B232ACP
