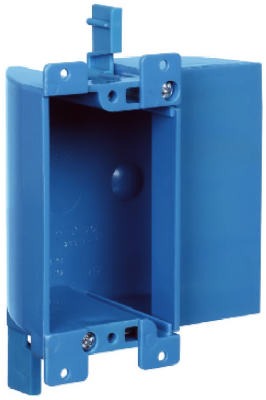

Abb Installation Products B117RSWR Single Gang Old Work Box

Product Description

The ABB INSTALLATION PRODUCTS B117RSWR is a single-gang shallow old work flanged electrical box designed for retrofit installations in existing walls. With a 17 cubic inch capacity and a depth of 2 inches, it provides additional wiring room without requiring access from behind the wall. The flanged design secures the box against the drywall face during installation. Electricians use this box when adding or relocating receptacles, switches, or low-voltage devices in finished residential or light commercial spaces where wall cavities have limited depth.

This box is suited for retrofit electrical work in residential and light commercial construction. It is engineered to work with 1 inch by 2 inch stud construction and is a practical solution when standard-depth boxes cannot be used due to shallow wall conditions. The 17 CUIN volume accommodates standard wiring configurations for receptacles and switches in single-gang applications. Electricians and qualified installers use this box when finishing basement spaces, remodeling existing rooms, or adding circuits without opening walls.

Key Features

• 17 cubic inch capacity provides added wiring room in shallow wall installations
• Shallow depth of 2 inches suits walls where standard boxes will not fit
• Flanged old work design mounts against drywall face without rear wall access
• Compatible with 1 inch by 2 inch stud construction
• Single-gang configuration accepts standard receptacles, switches, and cover plates
• Width of 4.25 inches and length of 4 inches fit standard wall opening requirements

Compatibility

Designed as an OEM-style replacement and retrofit solution for single-gang old work electrical box applications in residential and light commercial finished wall installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits at the panel before cutting the wall opening or pulling wire. Use a stud finder to confirm wall cavity depth and framing conditions before cutting. Ensure all conductors are properly secured and box fill calculations comply with NEC Article 314.

Technical Specifications

• Box Configuration: Single Gang
• Box Type: Old Work Flanged
• Capacity: 17 cubic inches
• Depth: 2 inches
• Width: 4.25 inches
• Length: 4 inches
• Compatible Stud Construction: 1 inch x 2 inch
• Weight: 4.37 pounds
• Sold As: Each
• Package Quantity: 18

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: B117RSWR
