Abb Installation Products Asl60-22 Connector Mech Al/Strd Copper 13/32in

Product Description

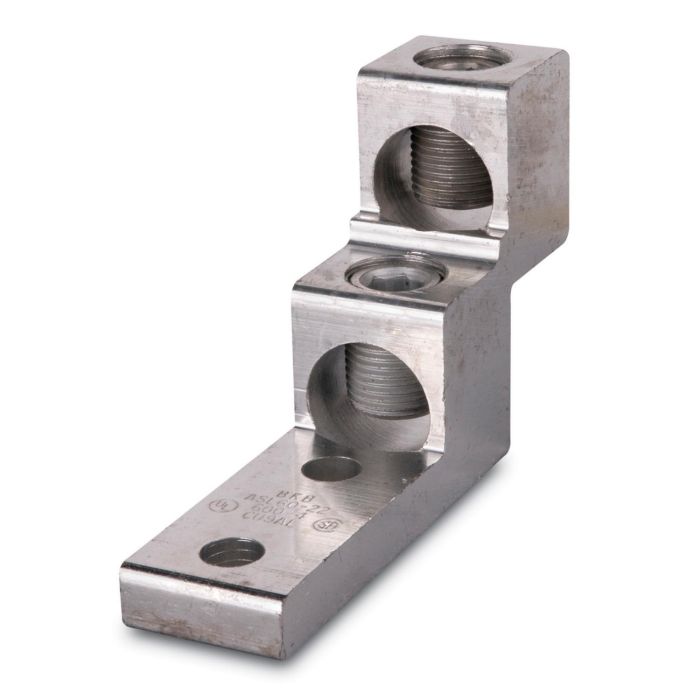

The ABB INSTALLATION PRODUCTS ASL60-22 is a Blackburn® Type ASL-ALCUL dual-rated mechanical connector designed for aluminum or stranded copper conductors ranging from 2 AWG to 600 kcmil. It features a 13/32 inch stud and 2 bolt holes. The tin plated connector ensures low contact resistance and easy installation without special tools.

• Dual Rated
• Mechanical Connector
• Easy installation - no special tools required

Product Highlights

Dual rated for aluminum and stranded copper conductors. Easy to install with no special tools required. Tin plated for low contact resistance.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: ASL60-22

Technical Specifications

• Conductor Type: Aluminum/Stranded Copper
• Conductor Size: 2 AWG to 600 kcmil
• Stud Size: 13/32 in
• Number of Bolt Holes: 2
• Type: Type ASL-ALCUL Dual Rated
• Tongue Size: 1-1/2 in W x 3/8 in THK
• Tongue Type: Straight
• Finish: Tin Plated
