Abb Installation Products ADR30 Connector Mech Al/Strd Copper 5/16in

Product Description

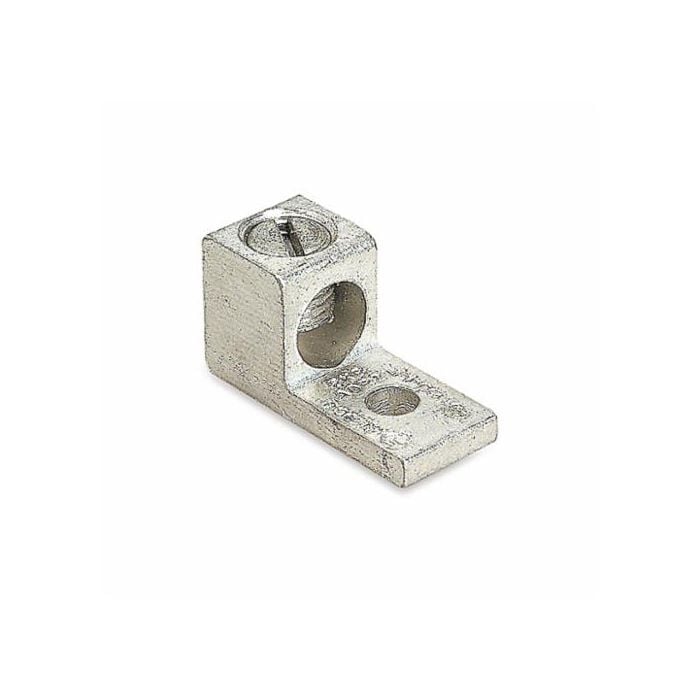

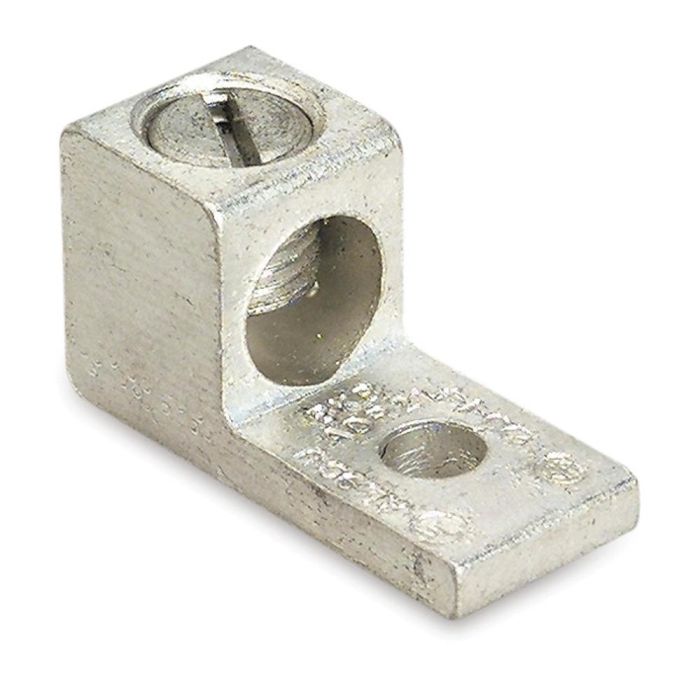

The ABB INSTALLATION PRODUCTS ADR30 is a Blackburn® ADR30 Type ADR-ALCUL dual-rated mechanical lug designed for connecting aluminum or stranded copper conductors. It accommodates conductors ranging from 6 AWG to 300 kcmil and features a 5/16 inch stud with 1 bolt hole. These mechanical connections offer a versatile and certified solution for electrical interface needs.

• Dual-Rated Mechanical Lugs
• Accepts 6 AWG to 300 kcmil Conductors
• Cast, forged or formed mechanical connections

Product Highlights

The ADR30 mechanical lug provides a reliable connection for aluminum or stranded copper conductors, with a dual-rated design and easy installation.

Product Information

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: ADR30

Technical Specifications

• Conductor Type: Aluminum/Stranded Copper
• Stud Size: 5/16 in
• Bolt Holes: 1
• Type: ADR-ALCUL Dual-Rated
• Conductor Size: 6 AWG to 300 kcmil
• Tongue Type: Straight Tongue
• Voltage: 600 VAC
• Configuration: 1-Conductor, Socket Screw, Tin Plated
• Manufacturer: ABB - Installation Products
• Finish: Tin Plated
• Material: Aluminum
