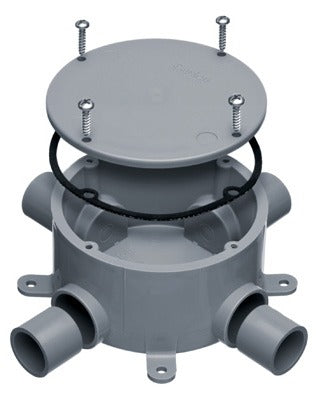

Abb E970CDE-CTN Pvc Junction Box 4 Knockout Openings

Product Description

The ABB INSTALLATION PRODUCTS E970CDE-CTN is a PVC junction box designed as a Type X access fitting for conduit installations. It features four knockout-type socket openings spaced at 90-degree intervals, giving installers flexible entry points for routing conductors. Compatible with both 1/2-inch and 3/4-inch conduit, this box suits a wide range of raceway configurations. A cover gasket is included to help seal the enclosure once wiring is complete. Electricians working on commercial or residential conduit systems will find this fitting straightforward to integrate into standard PVC raceway runs.

This junction box is suited for use in PVC conduit systems where a compact, accessible enclosure is needed at branch points or pull locations. The four 90-degree-spaced knockout openings allow conductors to enter or exit from multiple directions without requiring additional fittings. The included cover gasket helps maintain enclosure integrity after installation. It is appropriate for both new construction and retrofit conduit work where PVC is the specified raceway material.

Key Features

• Type X access fitting design for PVC conduit systems
• Four knockout-type socket openings spaced at 90-degree intervals
• Compatible with 1/2-inch and 3/4-inch conduit sizes
• Includes cover gasket for enclosure sealing
• PVC construction for corrosion resistance in damp or wet locations

Compatibility

Designed as an OEM-style fitting for use with 1/2-inch and 3/4-inch PVC conduit raceway systems in standard electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize all circuits in the work area before opening or modifying any junction enclosure. Knock out only the openings required for the conduit run to maintain enclosure integrity. Ensure the cover gasket is properly seated before securing the cover to protect the interior from moisture and debris.

Technical Specifications

• Material: PVC
• Conduit Size Compatibility: 1/2 inches and 3/4 inches
• Fitting Type: Type X Access Fitting
• Knockout Openings: 4 knockout-type socket openings
• Opening Spacing: 90 degrees
• Includes: Cover gasket
• Weight: 3.38 pounds
• Package Quantity: 5 per unit of measure

Standard Information

• Brand: ABB INSTALLATION PRODUCTS
• Manufacturer Part Number: E970CDE-CTN
