Zurn Z8743 Solid Top Open-Grid P.O. Plug (1-1/4 in Tailpiece) Z8743-PC

Product Description

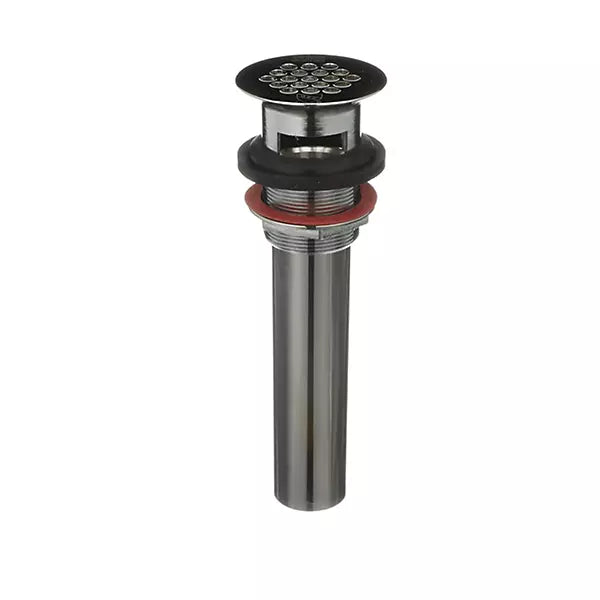

The Zurn Z8743 is a solid top, open-grid P.O. plug constructed of chrome-plated cast brass for sink overflow drainage and commercial drain applications. It includes a cast brass locknut and a 17-gauge tailpiece (standard 1-1/4 in x 5 in) and is cUPC listed. The 2-1/4 in diameter plug fits sinks up to 2-1/4 in deep and is available in a pull-out variant.

• Chrome-plated cast brass construction with solid top open-grid design
• Includes cast brass locknut and 17-gauge tailpiece (standard 1-1/4 in x 5 in; variant Z8743-8-PC: 1-1/4 in x 8 in)
• cUPC listed for commercial applications

Product Highlights

Solid top open-grid brass P.O. plug, 17-ga 1-1/4 in tailpiece, fits sinks up to 2-1/4 in depth; cUPC listed.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z8743

Technical Specifications

• Brand: Zurn
• Model: Z8743
• MPN: Z8743
• Alternate MPNs: Z8743-PC, Z8743-8-PC
• Type: Solid top open-grid P.O. plug
• Series: Z8743
• Material: Chrome-plated cast brass
• Finish: Chrome plated / Polished chrome
• Tailpiece: 17 gauge, 1-1/4 in x 5 in (standard); variant Z8743-8-PC: 1-1/4 in x 8 in
• Tailpiece Size (nominal): 1-1/4 in
• Plug Diameter: 2-1/4 in
• Fits Sink Depth: Up to 2-1/4 in
• Includes: Cast brass locknut and tailpiece
• Lock Type: Cast brass locknut
• Application: Commercial
• Certifications: cUPC listed
• TPN: 35282
• UPC: 084169618207
