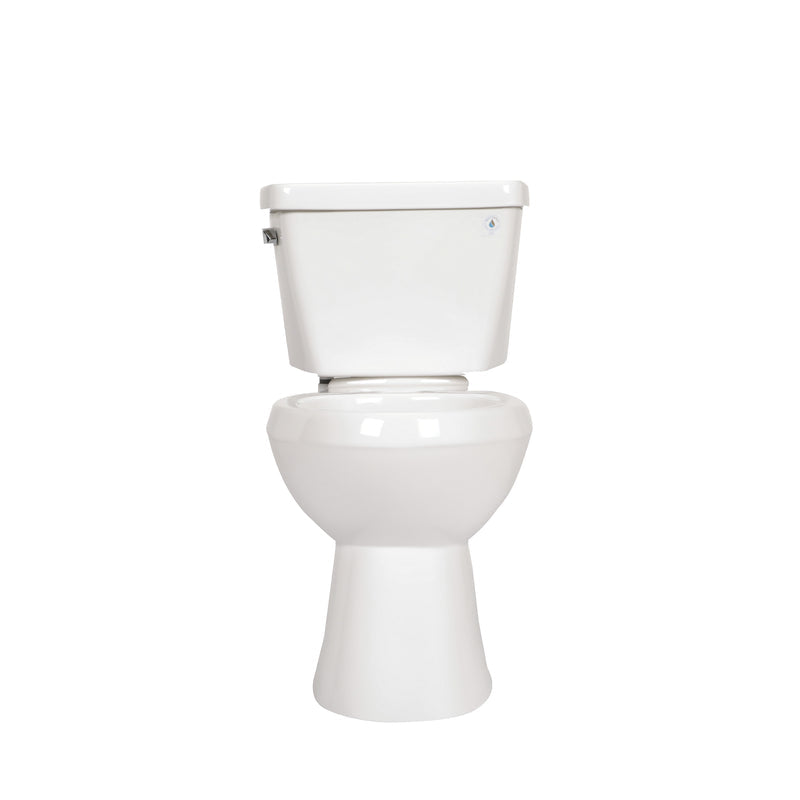

Zurn Z5555-K-RH 1.28GPF EL ADA RH

Product Description

The ZURN Z5555-K-RH is a two-piece toilet with a 1.28 GPF flush rate, designed to conserve water. This EcoVantage toilet achieves a 1000g MaP rating. It is ideal for commercial new construction and retrofit applications. The toilet features an ADA height and a right-hand lever.

• High Efficiency Toilet Reduces Water Usage by 20%
• ADA Comfort Height Elongated Front Rim
• 2-piece toilet with siphon jet flushing action and 2-1/8 in fully glazed trapway

Product Highlights

This Zurn EcoVantage toilet features a siphon jet flushing action, ADA height, and a right-hand lever, making it an efficient and accessible choice for commercial settings.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: Z5555-K-RH
• Country of Origin: China

Technical Specifications

• Mounting Style: Floor
• One Piece/Two Piece: Two Piece
• Bowl Shape: Elongated
• Gallons per Flush: 1.28
• Flush Rate: 1.28 gpf
• Flushing Method: Pressure Assist Single Flush
• Water Surface Area: 10" x 8"
• Collection: EcoVantage
• Height: 30-5/8"
• Width: 17-15/16"
• Depth: 22-7/16"
• Rim Height: 16-23/32 in
• Flush Handle: Right Hand Trip Lever
• Trapway Dia.: 2-1/8"
• With Seat/Without Seat: Without Seat
• Bowl Mfr. Model Number: Z5555-BWL
• Tank/Flushometer Mfr. Model Number: Z5535/45/55-TNK
• Rough-In: 12"
• Bolt to Seat Front: 18"
• Material: Vitreous China
• Includes: Bolt Caps, Tank, Tank Cover
• Standards: ANSI/ASME Standard A112.19.2-2003 and CAN/CSA B45 Requirements.
• Green/Sustainable Attribute: Toilet Uses 1.28 gpf or Less
• Rough-In Size: 12 in
• Type: 2-Piece High Performance
• ADA Compliance: Yes
• Bowl Dimensions: 14-3/4 in W x 18-3/8 in D
• Flush Valve Size: 3 in
• Flushing System: Siphon Action Jet
• Manufacturer: Zurn Water
• Manufacturer #: Z5555-K-RH
• Series: Z5555-K
• Tank Inlet Size: 3/8 in IPS
• Trapway Size: 2-1/8 in
• Country of Origin (subject to change): China
