Zurn QQPC55X Cr Polymer Coupling 1 Barb x 1 Barb (1 in)

Product Description

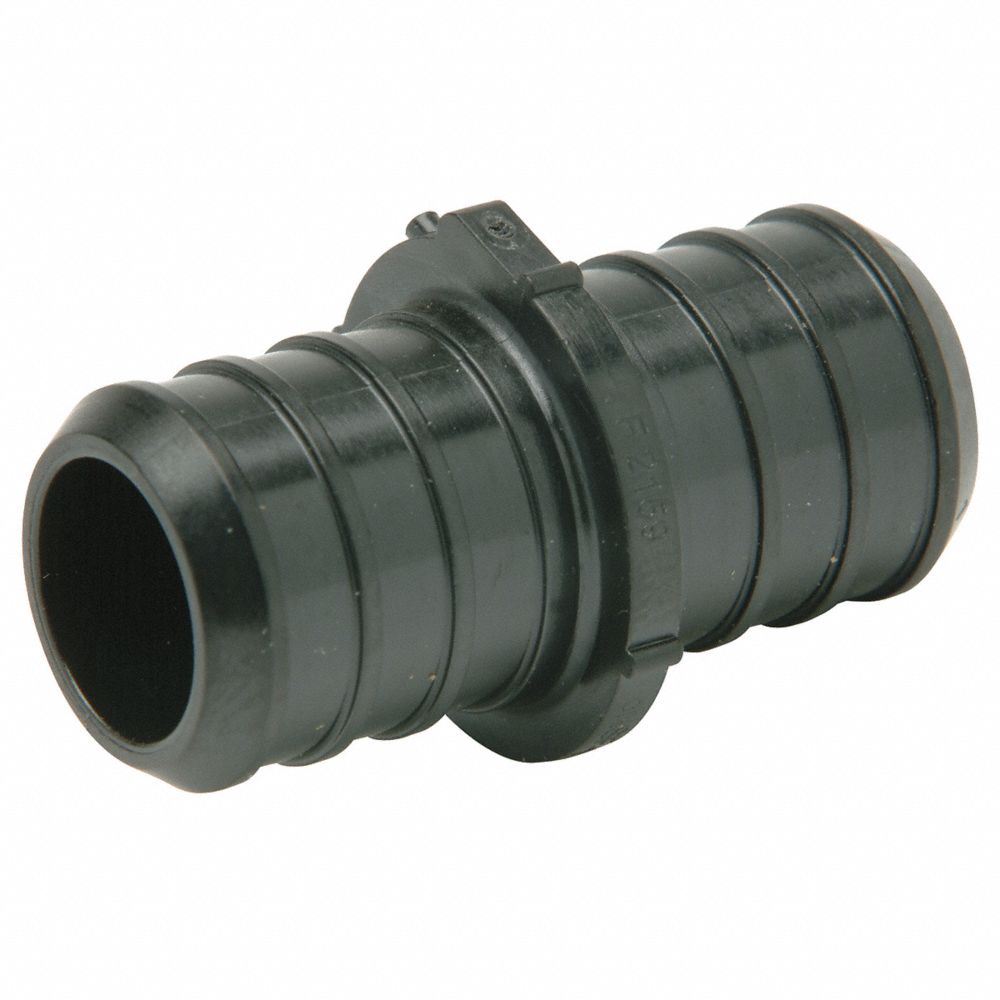

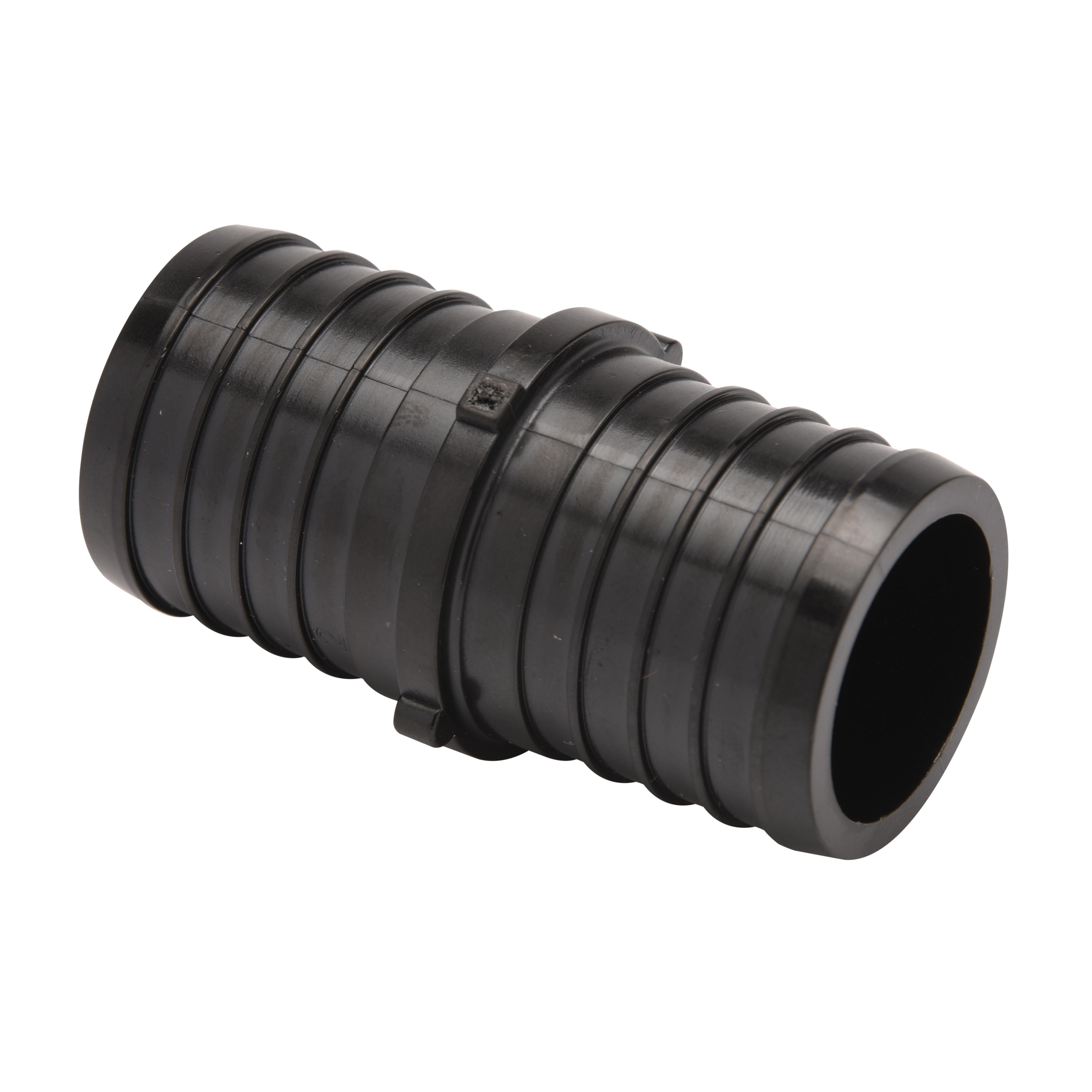

Zurn QQPC55X is a Cr polymer coupling for 1-inch PEX tubing with 1 barb x 1 barb crimp connections. Molded from CR/Acudel polymer, it is intended for hot and cold potable water, plumbing, and radiant heating systems and meets ASTM F877 and ASTM F2159. The fitting has a system pressure rating of 160 psi at 73°F and an operating temperature up to 200°F; length is approximately 1.83 in.

• Crimp-type coupling for 1 in PEX tubing with 1 barb x 1 barb connections
• Molded Cr/Acudel polymer construction; length 1.83 in, outer diameter 0.95 in
• Pressure rating 160 psi at 73°F; temperature rating up to 200°F; meets ASTM F877, ASTM F2159, NSF/ANSI 14/61 and CSA B137.5

Product Highlights

1 in PEX crimp coupling; Cr/Acudel polymer; 160 psi at 73°F; 200°F max; ASTM, NSF, CSA compliant.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: QQPC55X
• Country of Origin: Import

Technical Specifications

• Brand: Zurn
• Manufacturer Part Number: QQPC55X
• Product Name: Cr polymer coupling
• Fitting Type: Coupling
• Type: Crimp
• Material: Cr polymer (Acudel polymer noted)
• Material Specification: ASTM F877; ASTM F2159
• Size: 1 in
• Nominal Size: 1 in
• Connection Type: Barb x Barb
• End Connection: Barb x Barb
• End Style: Barb
• Connection Size 1: 1 in
• Connection Size 2: 1 in
• Length: 1.83 in
• Outer Diameter: 0.95 in
• Pressure Rating: 160 psi at 73°F
• Temperature Rating: 200 deg F
• Operating Temperature Range: +33°F to +200°F
• Standards/Certifications: NSF/ANSI 14; NSF/ANSI 61; ASTM F877; ASTM F2159; CSA B137.5; NSF/ANSI 372
• For Use With: PEX tubing; Zurn PEX potable non-barrier pipes
• Lead Free: Yes
• Country of Origin: China
• UPC: 08416968587
• Weight: 0.024 POUND
• Application: Hot and cold potable water systems, plumbing, radiant heating systems
• Process: Molded
• Pressure Rating Note: System pressure rating measured with Zurn PEX tube
