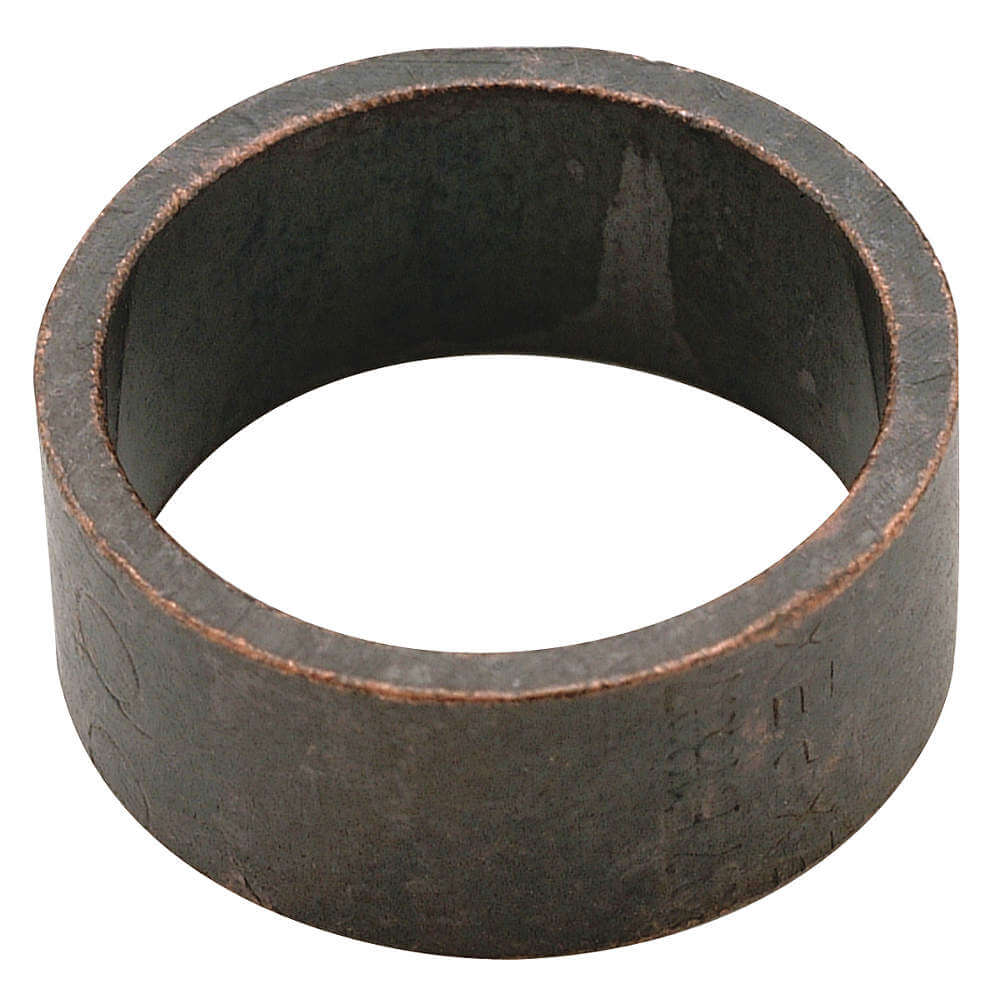

Zurn QCR3X Copper Crimp Ring 1/2 in (1 Each)

Product Description

Zurn QCR3X is a copper crimp ring for 1/2 inch PEX connections used to secure PEX tubing to compatible fittings. The ring is intended for crimp-style connections with 1/2 in PEX and is identified by manufacturer part number QCR3X. Typical applications include potable hot and cold water plumbing and retrofit PEX fitting installations.

• Material: annealed copper; designed for 1/2 in PEX tubing and crimp-style connections
• Compatible with Zurn PEX piping, XL brass and QickSert CR fittings; suitable for SDR9 piping
• Certifications and ratings: meets ASTM F877, ASTM F1807, CSA B137.5 and NSF; rated to 80 psi and 33 to 200 deg F

Product Highlights

Copper crimp ring for securing 1/2 in PEX to fittings; certified for potable hot and cold water; rated to 80 psi and 33–200°F.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: QCR3X
• Country of Origin: CN

Technical Specifications

• Brand: ZURN
• MPN: QCR3X
• Material: Annealed copper
• Size: 1/2 in
• Nominal Size: 1/2 in
• End Style: PEX
• Connection Type: Crimp / Clamp ring
• Compatible With: Zurn PEX piping, XL brass fittings, QickSert CR fittings
• Application: Potable hot and cold water plumbing
• Pipe SDR Compatibility: SDR9
• Pressure Rating: 80 psi
• Temperature Rating: 33 to 200 deg F
• Standards / Certifications: ASTM F877; ASTM F1807; CSA B137.5; NSF
• Outer Diameter: 3/4 in OD
• Pack Quantity: 1 Each
• UPC: 08416907633
• Country Of Origin: CN
