Zurn P6-DGC 6 DI Grate Only

Product Description

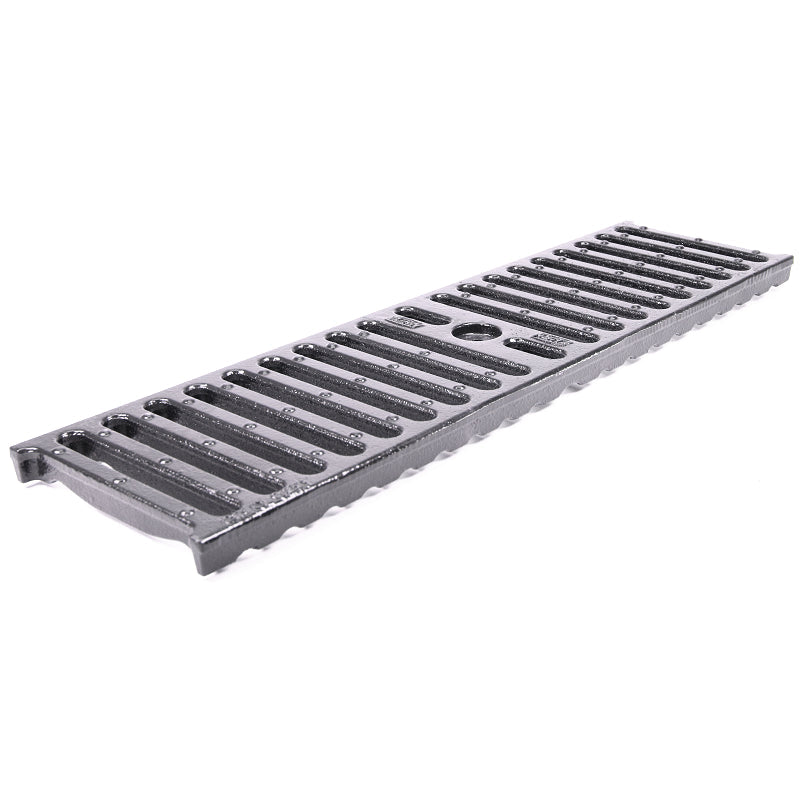

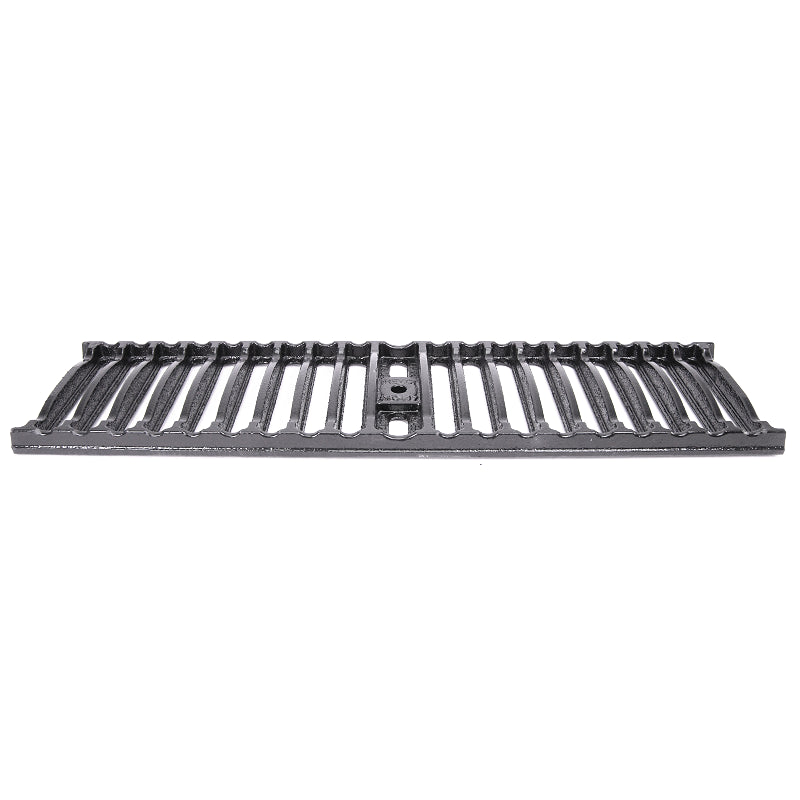

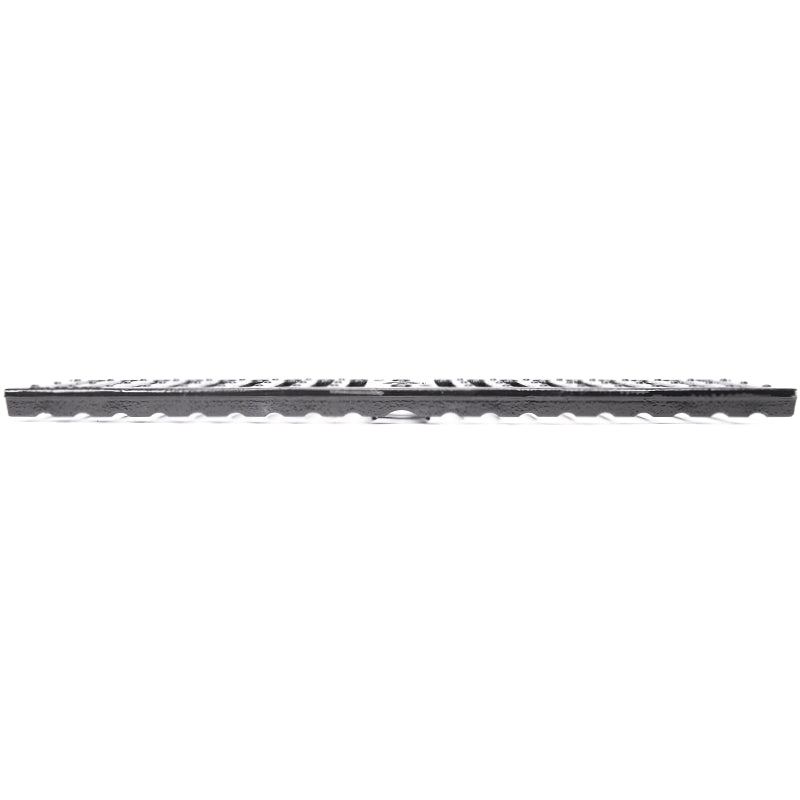

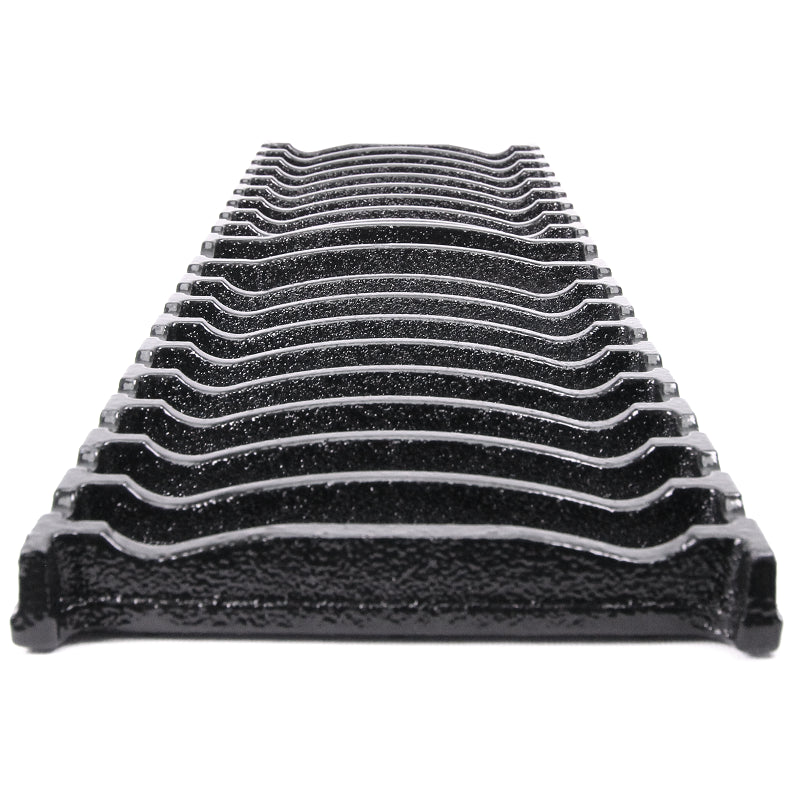

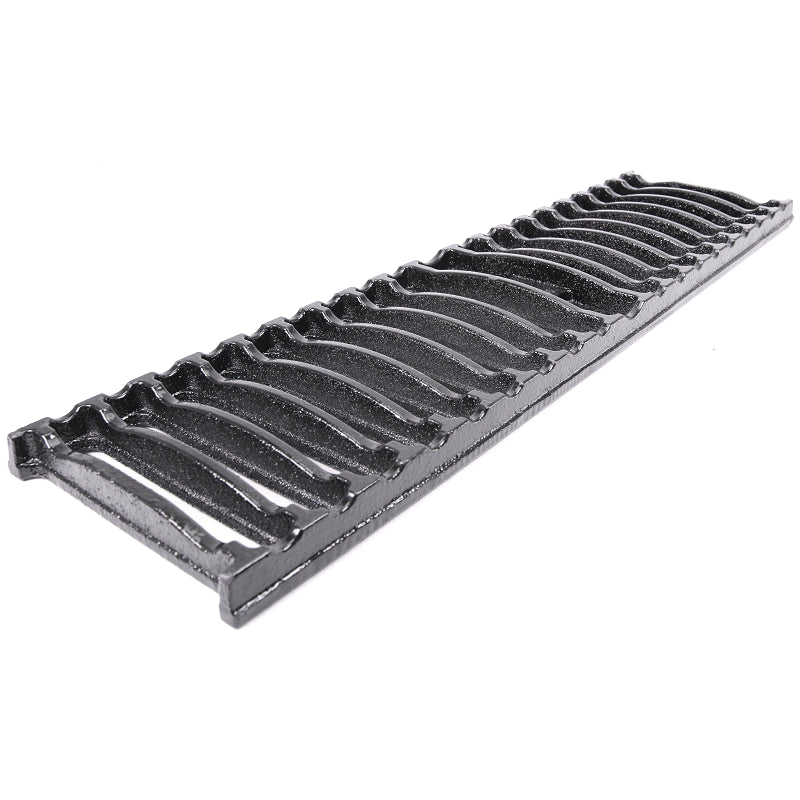

The ZURN P6-DGC is a class C 6-inch ductile iron slotted grate designed for heavy-duty traffic. Its durable construction stands up to tough environments and conforms to DIN rating of C. It is H-20 load rated and ASTM A536 compliant. Building owners can rest easy knowing the construction will stand the test of time.

• Durable construction stands up to tough environments
• Grate is H-20 load rated and ASTM A536
• Recommended for heavy-duty traffic areas

Product Highlights

The ZURN P6-DGC grate is designed to fit the Zurn Z806, Z886, Z886-ST, Z890, and Zurn Z883 trench drain systems and is typically used in a variety of heavy-duty applications.

Product Information

Standard Information

• Brand: ZURN
• Manufacturer Part Number: P6-DGC

Technical Specifications

• Width: 5.1
• Height: 0.9
• Length: 19.6
• Unit_Width: 5.1
• Commercial_or_Residential: Primarily Commercial
• DIN Rating: C
• ANSI Rating: Heavy-Duty
• H-20 Load Rated: true
• ASTM A536 Grade: 80-55-06
• Application: Vehicle Traffic
• Grate Open Area: 28.2 in ² per linear foot [594cm ²/m]
• Grate Width: 5.38" for Zurn Z886
• Grate Thickness: 0.75"
• Grate Material / Color / Finish: Ductile/Cast Iron - Raw
• Manufacturer: Zurn
• System: Z886
• Grate Load Class: Class C
• Grate Pattern: SLOTTED
• Grate Pattern Style: SLOTTED
