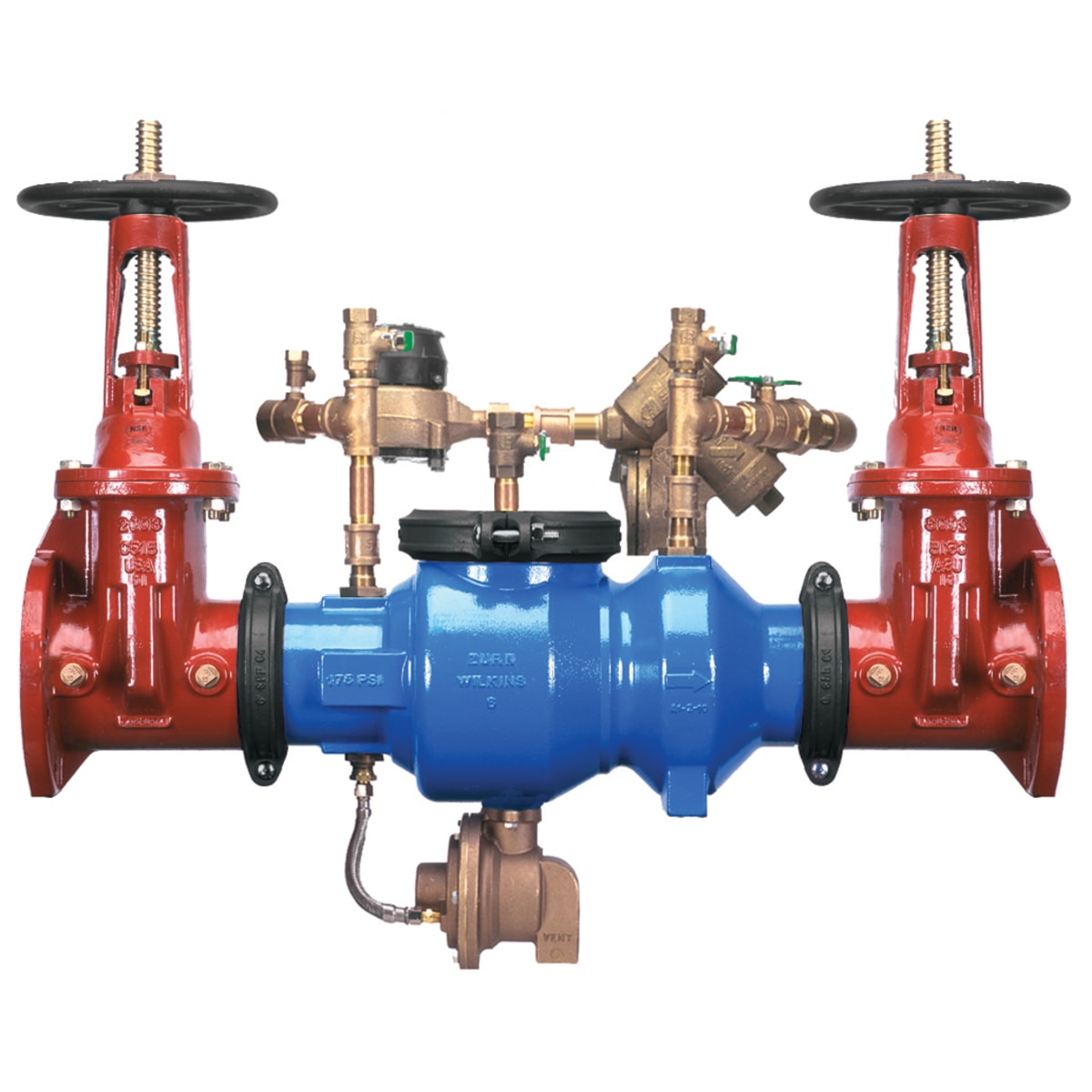

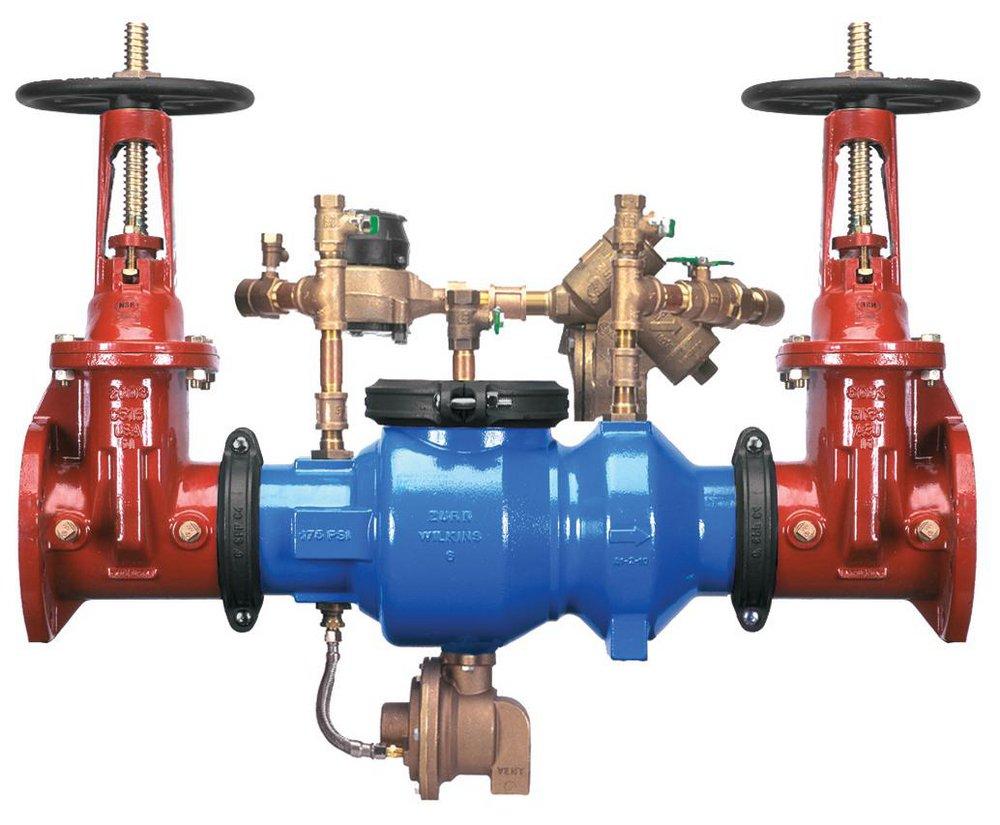

Zurn 6-375ADA 375ADA 6 in. Epoxy Coated Ductile Iron Flanged 175 psi Backflow Preventer

Product Description

The Zurn 6-375ADA is a reduced pressure backflow preventer designed for high hazard protection. It features an epoxy coated ductile iron body that is suitable for fire protection applications.

• Constructed with ductile iron for durability
• Provides effective unauthorized water use detection
• Available with grooved or flanged connection options

Product Highlights

This backflow preventer is equipped with a metered by-pass for leak detection and unauthorized use. It supports both vertical and horizontal mounting.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: 6-375ADA

Technical Specifications

• Size: 6 inches
• Type: Reduced Pressure Detector Backflow Preventer
• Material: Ductile Iron
• Weight: 497.845 lbs
• Height: 39.5 inches
• Width: 23 inches
• Length: 51.5 inches
• Connection Size: 6 x 6 inches
• Maximum Working Water Pressure: 175 psi
• Maximum Working Water Temperature: 140 deg F
• ASSE Standard: ASSE 1047
• Application: Waterworks
• Finish Color: Blue, Red
• Valve Style: In-line
• Connection Type: Flanged x Flanged
• Mounting Type: Vertical, Horizontal
