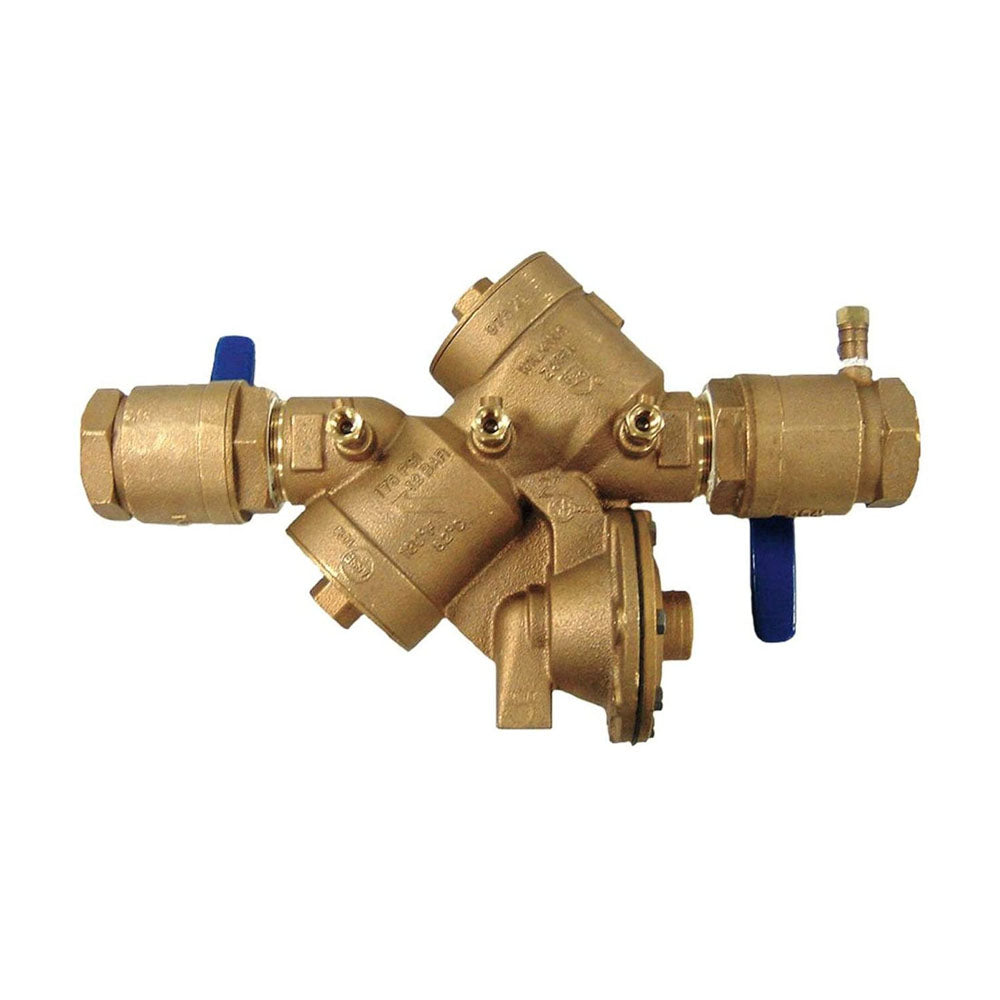

Zurn 2-975XL2 Backflow Preventer Reduced Pressure Assembly 2 Inch

Product Description

The Zurn Industries 2-975XL2 is a reduced pressure backflow preventer. This device is used in potable water applications to protect against contamination from backsiphonage and backpressure. It features a bronze body and is compliant with lead-free standards. The wye pattern design allows for easy service access, which minimizes labor costs and downtime during repairs.

• Nominal size of 2 inches
• Maximum pressure rating of 175 PSI
• Flow rate of 167 GPM

Product Highlights

Suitable for potable water systems and complies with multiple standards including ASSE 1013 and CSA B64.4.

Product Information

Standard Information

• Manufacturer: Zurn Industries
• MPN: 2-975XL2

Technical Specifications

• Applicable Standards: ANSI B1.20.1, AWWA C511, ASSE 1013, ANSI/NSF 61
• Application: Potable Water System
• Body Material: ASTM B584 Cast Bronze
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 26-1/2 inches
• Disc/Poppet Material: Silicone
• Spring Material: 300 Stainless Steel
• Seat Material: Noryl
• Temperature Rating: 180 degrees F
• Hydrostatic Test Pressure Rating: 350 PSI
• Inclusions/Features: Full Port QT Ball Valve
• Lead-Free: Yes
