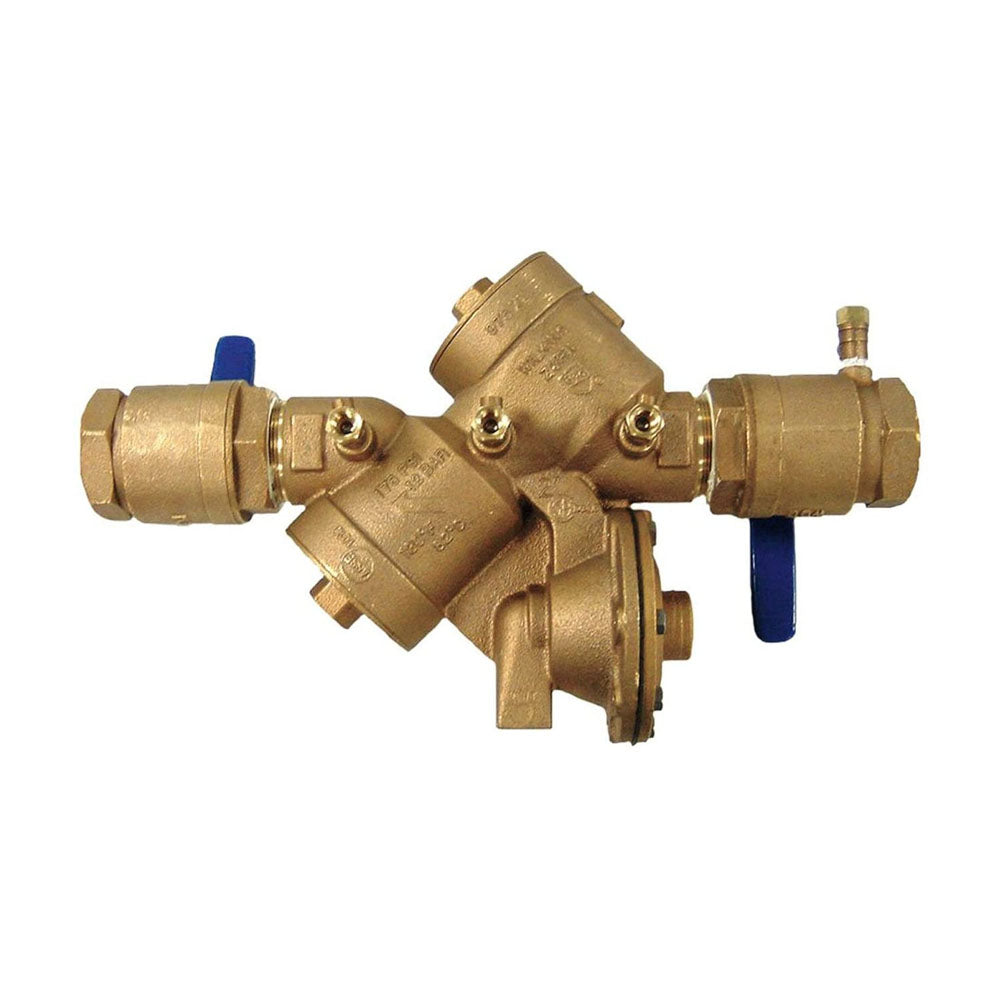

Zurn 114-975XL 1-1/4 975XL Reduced Pressure Principle Backflow Preventer

Product Description

The Zurn 114-975XL 1-1/4 975XL Reduced Pressure Principle Backflow Preventer is designed for non-potable water systems. It provides high health hazard protection against backsiphonage and backpressure, keeping your potable water supply safe from contamination. The compact wye pattern design with a short lay length simplifies installation in tight spaces. Additionally, the cast bronze structure features individual access to the relief valve and each check valve, which reduces labor costs and speeds up repairs.

• Wye pattern design minimizes installation time
• Compact design reduces replacement costs
• Easy access to check valves enhances maintenance efficiency

Product Highlights

This unit is fully serviceable in line and meets several industry standards.

Product Information

Standard Information

• Brand: Zurn Wilkins
• MPN: 114-975XL

Technical Specifications

• Size: 1-1/4 inches
• Type: Reduced Pressure Principle Backflow Preventer
• Material: Bronze
• Weight: 28 lbs
• Width: 6.25 inches
• Height: 11.75 inches
• Length: 17 inches
• Maximum Working Water Pressure: 175 psi
• Maximum Working Water Temperature: 180 degrees F
• Mounting Type: Horizontal
• Connection Size: 1-1/4 x 1-1/4 inches
• Connection Type: FNPT x FNPT
• ASSE Standard: ASSE 1013
