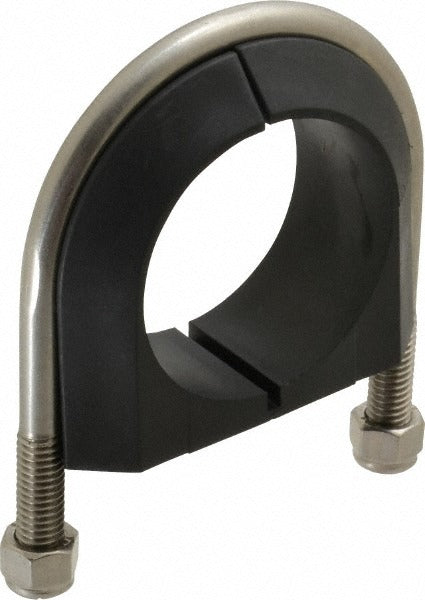

Zsi UB2PA6 U-bolt Clamp with Cushion 2 in 316 Ss

Product Description

The ZSI UB2PA6 is a cushioned U-bolt pipe clamp manufactured from 316 stainless steel, designed to secure 2-inch nominal pipe to structural supports in mechanical, plumbing, and HVAC piping systems. The integrated cushion lining reduces vibration transfer between the pipe and the support structure while protecting the pipe surface from direct metal contact. At 0.45 pounds, the clamp is lightweight without sacrificing the corrosion resistance that 316 grade stainless provides in wet, chemical-exposure, or outdoor environments. Rated at 1.22 pounds load capacity, this clamp suits light-duty support applications where corrosion resistance is the primary design requirement.

This clamp is used in commercial and industrial piping installations where 316 stainless steel is specified for corrosion resistance, including marine environments, food-service facilities, chemical processing areas, and outdoor mechanical systems. Plumbers, pipefitters, and mechanical contractors install this type of clamp when supporting 2-inch pipe runs along walls, ceilings, or structural members with panel or substrate thickness up to 0.75 inches. It is a standard component in hydronic, refrigerant, and process piping support assemblies.

Key Features

• 316 stainless steel construction for superior corrosion resistance in harsh or wet environments
• Integrated cushion lining dampens vibration and protects pipe exterior from abrasion
• Fits 2-inch nominal pipe size
• Accommodates mounting panel or substrate thickness up to 0.75 inches
• Lightweight at 0.45 pounds for easy single-technician handling during overhead installations

Compatibility

Designed as an OEM-style replacement and standard-fit clamp for 2-inch nominal pipe support applications requiring cushioned U-bolt hardware in 316 stainless steel.

Installation Notes

Installation is typically performed by licensed plumbers or pipefitters in accordance with IPC or IFGC support spacing requirements for the pipe material and size. Shut off flow and relieve system pressure before repositioning any existing pipe support hardware. Use appropriate stainless steel fastener hardware to avoid galvanic corrosion at the mounting point. Verify that the mounting substrate thickness does not exceed 0.75 inches to ensure proper clamp engagement and load transfer.
