Zsi 724212 Strut Clamp 2 1/8 inchesOD 3 1/4 inchesW

Product Description

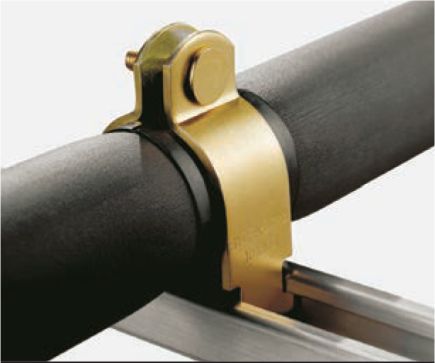

The ZSI 724212 Strut Clamp is a zinc-plated steel clamp designed for securing a single line with a maximum outside diameter of 2 1/8 inches. Featuring a smooth bore style and TPE cushion material, it is suitable for elastomeric insulation applications. This channel-mount strut clamp has a load capacity of 730 lb and is compatible with Wesanco Strut channels, specifically those with a 1 5/8 inch width. It is engineered for general purpose use with a maximum operating temperature of 225 degrees F.

• Zinc-plated steel construction with TPE cushion material for durability and insulation protection.
• Designed for single-line applications with a maximum outside diameter of 2 1/8 inches.
• Channel mount type with a load capacity of 730 lb, compatible with 1 5/8 inch wide strut channels.

Product Highlights

Durable zinc-plated steel strut clamp with TPE cushion, designed for 2 1/8 inch OD lines, channel mounting, and a 730 lb load capacity.

Product Information

Standard Information

• Brand: ZSI
• Manufacturer Part Number: 724212
• Country of Origin: United States

Technical Specifications

• Clamp Type: Strut Clamp
• For Use On: Elastomeric Insulation
• Mount Type: Channel
• Clamp Style: Insulation Coupling
• Load Capacity: 730 lb
• Overall Width: 3 1/4 in
• Material: Zinc-Plated Steel
• Overall Height: 5 in
• Overall Length: 2 61/64 in
• Clamp Bore Style: Smooth
• Cushion Material: TPE
• Installed Height: 6 5/8 in
• Temperature Rating: General Purpose
• Number of Lines Supported: 1
• Compatible Tube Size: 2 1/8 in
• System of Measurement: Inch
• Compatible Strut Channel Width: 1 5/8 in
• For Insulation Thickness: 1/2 in
• Number of Mounting Holes: 0
• Compatible Manufacturer Part Number: Wesanco Strut
• Maximum Outside Diameter: 2 1/8 in
• Maximum Operating Temperature: 225 Degrees F
