Zoro PG1324CA0009 Underground Enclosure Cover 8000 Lb

Product Description

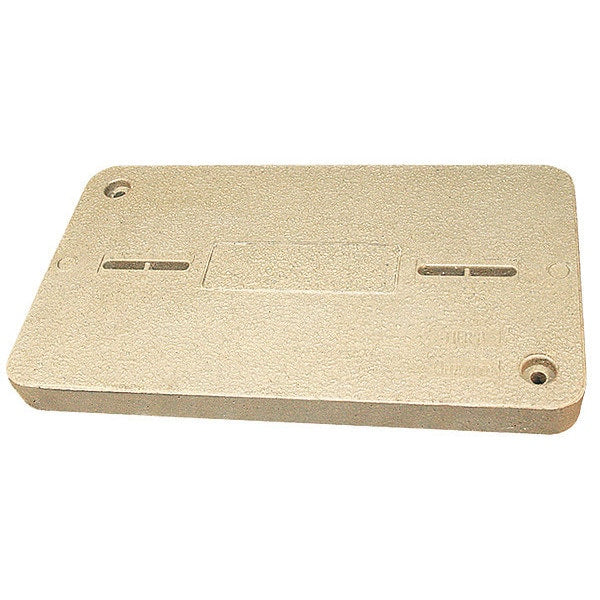

The ZORO PG1324CA0009 is a PG-style underground enclosure cover constructed from monolithic polymer concrete. It is designed to seal and protect underground utility enclosures in areas subject to non-deliberate vehicle or pedestrian traffic. The cover carries an 8,000-pound load rating and meets UL listing requirements under ANSI/SCTE 77 2007 Tier 8. Finished in gray with a blank logo face, it seats with two stainless steel hex head bolts sized 3/8-16 x 2 3/4 UNC. A pull slot measuring 1/2 x 4 inches is integrated for cover removal. This product is installed by utility, telecom, and underground infrastructure contractors.

This cover is intended for use in non-deliberate traffic zones such as landscaped areas, pedestrian corridors, and low-speed access paths where controlled vehicle loads may occasionally occur. It fits enclosures measuring 15 1/2 x 25 inches. The polymer concrete construction resists corrosion and chemical exposure common in buried utility environments, making it suitable for telecom, electrical, and similar underground infrastructure applications.

Key Features

• 8,000-pound load rating rated for non-deliberate traffic areas
• Monolithic polymer concrete construction resists corrosion and chemical exposure
• UL listed to ANSI/SCTE 77 2007 Tier 8 standard
• Secured by two stainless steel 3/8-16 x 2 3/4 UNC hex head bolts
• Integrated 1/2 x 4 inch pull slot for field removal
• Blank logo face in gray finish

Compatibility

Designed for use with 15 1/2 x 25 inch underground enclosures as specified by the manufacturer.

Installation Notes

Installation is typically performed by utility or underground infrastructure contractors. Before servicing or replacing the cover, verify the enclosure is de-energized or depressurized as appropriate for the utility type. Use proper lifting tools rated for the cover weight and confirm bolt torque is applied evenly to seat the cover flush. This cover is rated for non-deliberate traffic only and must not be installed in roadway lanes or high-traffic paved surfaces without confirming the appropriate load tier for that application.

Technical Specifications

• Material: Monolithic Polymer Concrete
• Load Rating: 8,000 pounds
• Standard: UL Listed to ANSI/SCTE 77 2007 Tier 8
• Cover Length: 23.25 inches
• Cover Width: 13.75 inches
• Cover Depth: 2 inches
• Pull Slot Size: 0.5 x 4 inches
• Bolt Type: Stainless Steel Hex Head, 3/8-16 x 2 3/4 UNC (Qty 2)
• Color: Gray
• Logo: Blank
• Traffic Rating: Non-Deliberate Traffic Only

Standard Information

• Brand: ZORO
• Manufacturer Part Number: PG1324CA0009
