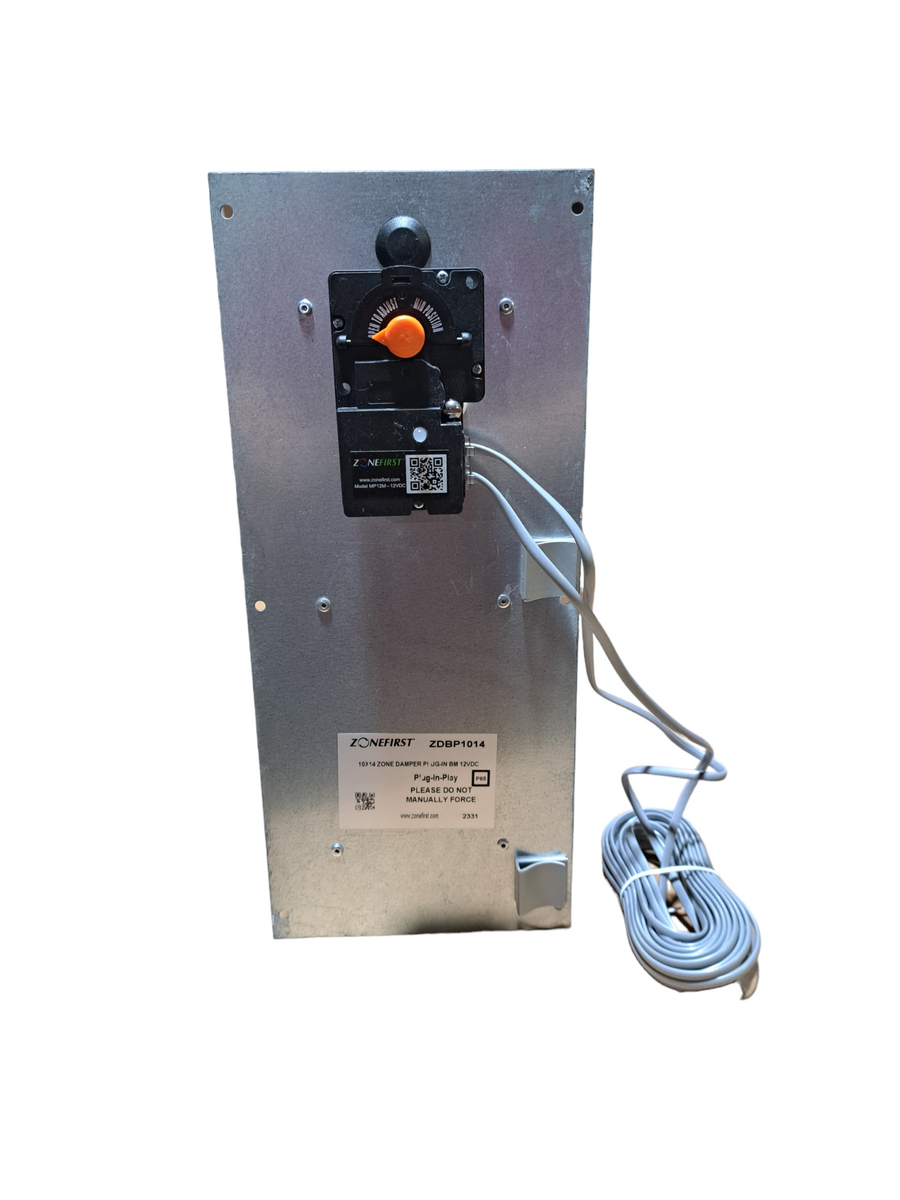

Zonefirst ZDBP1014 Zone Damper With MP12M Plug-In Motor Rectangular 7 in-

Product Description

The Zonefirst ZDBP1014 zone damper is a highly functional component designed for efficient HVAC systems. This rectangular damper features a plug-in MP12M motor that operates on a twelve-volt DC power source. It comes fully assembled and is lightweight, allowing for easy installation in any position within a properly sized duct. The unit is capable of handling duct pressures up to two inches of water column.

• Power type: Plug-in motor for ease of use
• Durable design with extruded aluminum construction
• Tested to support over one million cycles for longevity

Product Highlights

This damper facilitates improved airflow control, enhancing comfort in residential and commercial settings.

Product Information

Standard Information

• Model: ZDBP
• Manufacturer: ZoneFirst

Technical Specifications

• Blade Type: Parallel
• Electrical Connection: RJ11 Modular
• Humidity Rating: 5 to 95% RH Non-Condensing
• Timing Range: 5 seconds Powered Open/Closed
• Torque Rating: 7 in-lb
• Material: Extruded Aluminum
• Finish: Mill
• Motor Type: Power Open, Power Closed
• Motor Specifications: 12 VDC, 0.1 A
• Shape: Rectangular
• Pressure Rating: 2 in-WC
• Temperature Rating: 0 to 150 degrees F Operating, -13 to 150 degrees F Storage
