ZONEFIRST ZDBP1012 Zone Damper With MP12M Plug-In Motor, Rectangular, 7 in-

Product Description

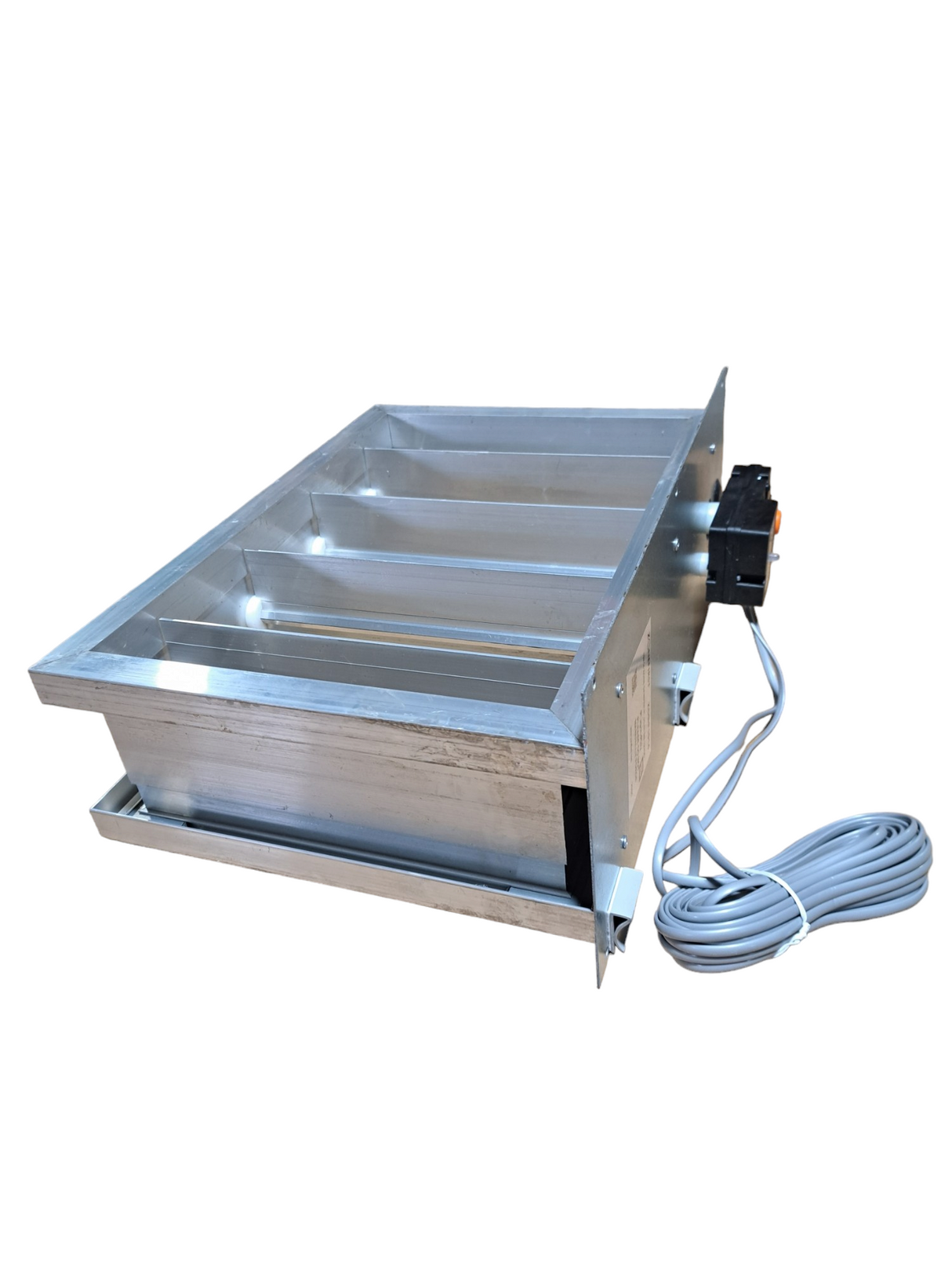

The ZONEFIRST ZDBP1012 zone damper is a functional component designed for HVAC systems. It includes extruded aluminum parallel blades, ensuring durability and efficiency. This damper is equipped with a power open and power close plug-in motor, allowing for precise control.

This product is suitable for installation in various duct orientations and can withstand duct pressures up to two inches of water column. The motor is strategically positioned to allow for easy duct insertion.

• Shipped in the open position for quick installation.
• Powered by a reliable twelve-volt DC motor tested for over one million cycles.
• Features an LED indicator to show damper position.

Product Highlights

The ZDBP1012 is essential for efficient airflow management in zoned HVAC applications.

Product Information

Standard Information

• Model: ZDBP
• Blade Type: Parallel

Technical Specifications

• Electrical Connection: RJ11 Modular
• Humidity Rating: 5 to 95% RH Non-Condensing
• Timing Range: 5 s Powered Open/Closed
• Torque Rating: 7 in-lb
• Material: Extruded Aluminum
• Finish: Mill
• Mounting Type: Bottom
• Motor Type: Power Open, Power Closed
• Motor Specifications: 12 VDC, 0.1 A
• Shape: Rectangular
• Pressure Rating: 2 in-WC
• Temperature Rating: 0 to 150 deg F Operating, -13 to 150 deg F Storage
• Width: 6 in
