Zonefirst RDP07 RDP plug-in-play zone damper 12VDC (7in)

Brand: ZONEFIRST
SKU: RDP07
Availability: In Stock

Ships same day if ordered by 12 pm
$210.01
$210.01
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

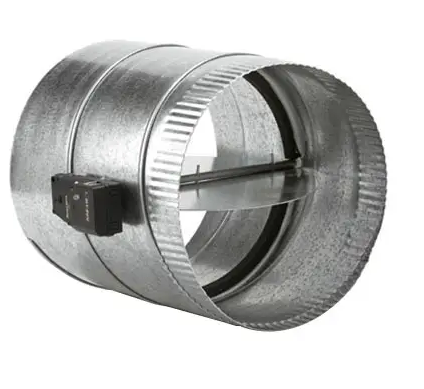

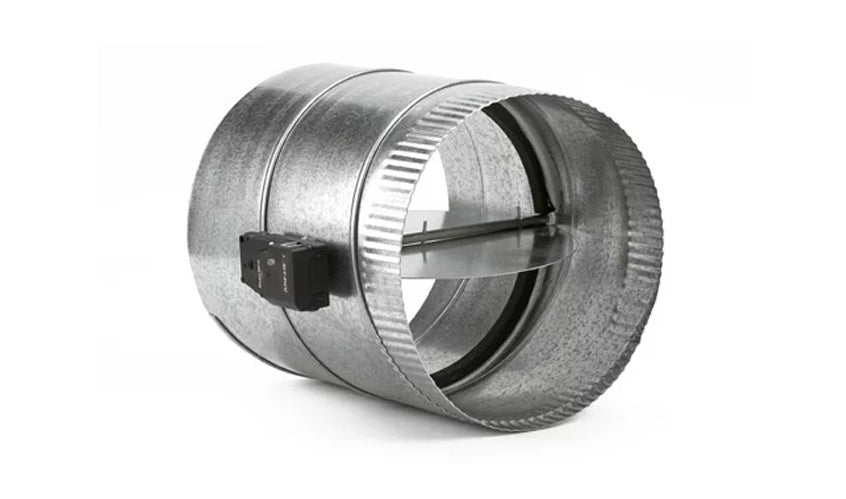

ZoneFirst RDP07 is a round single-blade plug-in zone damper supplied with a 12 VDC plug-in motor for use with ZoneFirst plug-in zoning panels. The 7-inch galvanized steel damper mounts inline in round spiral duct and includes an RJ11 modular connector and 25 ft modular cord. The MP12M motor provides 7 in-lb torque, 5 second powered open/close timing, and a two-color LED position indicator.

  • 7-inch round single-blade damper, 24 gauge galvanized steel, inline mounting for spiral duct
  • 12 VDC MP12M plug-in motor, RJ11 modular connector, 25 ft modular cord, two-color LED position indicator
  • 7 in-lb torque, 5 s powered open/close timing, rated for typical duct systems (see pressure recommendations)

Product Highlights

7in round single-blade plug-in damper with 12VDC MP12M motor, RJ11 connection, 7 in-lb torque, and two-color LED for use with ZoneFirst plug-in zoning panels.

Product Information

Standard Information

  • Brand: ZONEFIRST
  • Manufacturer Part Number: RDP07
Technical Specifications
Brand
ZONEFIRST
MPN
RDP07
Model
RDP (Plug-In-Play Round Damper)
Product Name
RDP plug-in-play zone damper
Damper Type
Single-blade round damper for spiral duct
Shape
Round
Diameter
7 in
Material
Steel
Gauge
24 ga
Finish
Galvanized
Mounting Type
Inline
Motor Voltage
12 VDC
Motor Current
0.1 A
Motor Model
MP12M
Motor Type
Plug-in motor (power open/power closed)
Electrical Connection
RJ11 modular connector
Cord Length
25 ft modular cord included
LED Indicator
Two-color LED to indicate damper position
Torque
7 in-lb
Timing Range
5 s powered open/close
Differential Pressure Rating
Rated for duct systems less than 2 in-WC
Pressure Recommendation
For systems over 0.5 in S.P. use RDP or RDM
Operating Temperature
0 to 150 deg F
Storage Temperature
-13 to 175 deg F
Humidity Rating
5 to 95% non-condensing
Length
9-3/4 in
Mounting Position
Can be installed in any position in properly sized duct
Daisy Chain Capacity
Daisy chain up to 10 dampers per zone
Blade Type
Single
Compatibility
Used only with ZoneFirst plug-in zoning panels (RDP)
