Zonefirst 4PDR 4 Pole Double Throw Relay 24 Volt AC (Plug-In) PIRR

Product Description

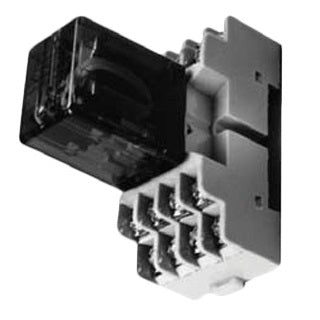

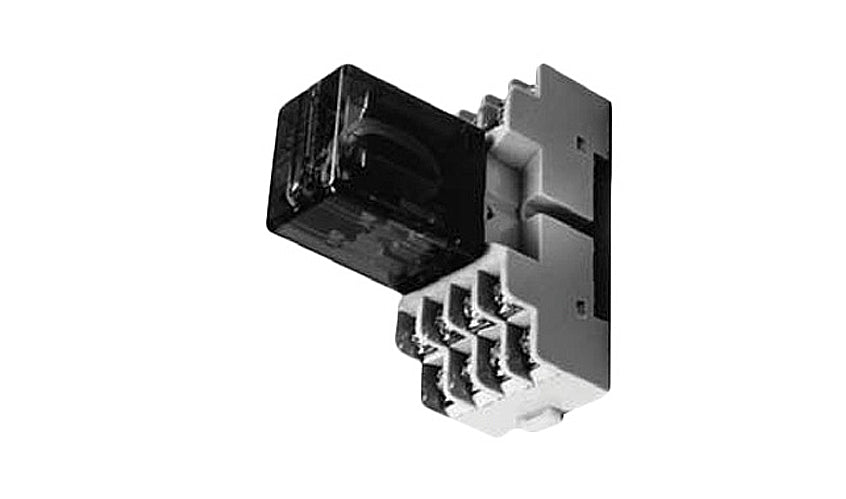

Zonefirst 4PDR is a 24 V AC multi-purpose plug-in relay that provides four single-pole double-throw contacts for HVAC zoning and general control applications. It mounts in a plastic DIN rail or flush-mounted socket and is commonly used as a slave damper control, allowing a single switch or control zone to operate up to four dampers. The relay has a nominal coil current of 50 mA and contacts rated 3 A at 250 VAC.

• Coil voltage 24 V AC with nominal coil current 50 mA
• Four SPDT contacts (4 pole double throw) rated 3 A at 250 VAC
• Plug-in mounting for plastic DIN rail or flush-mounted socket; screw terminal connection; replacement plug-in model PIRR

Product Highlights

4PDT plug-in relay for HVAC zoning and damper control

Product Information

Standard Information

• Brand: ZONEFIRST
• Manufacturer Part Number: 4PDR

Technical Specifications

• Brand: Zonefirst
• MPN: 4PDR
• SKU: 4PDR
• Product Type: 4 Pole Double Throw relay (4PDT)
• Coil Voltage: 24 V AC
• Coil Current: 50 mA (nominal)
• Contact Configuration: 4 Pole Double Throw (four SPDT contacts)
• Contact Rating: 3 A @ 250 VAC, gold-flashed silver alloy
• Mounting Type: Plug-in; plastic DIN rail or flush-mounted socket
• Connection Type: Screw terminal
• Replacement Plug-in Model: PIRR
• Operating Temperature: -40 F to 122 F
• Typical Application: Slave damper control; control up to four dampers from a single switch or zone
• Documentation: Manufacturer datasheet/manual available (PDF)
