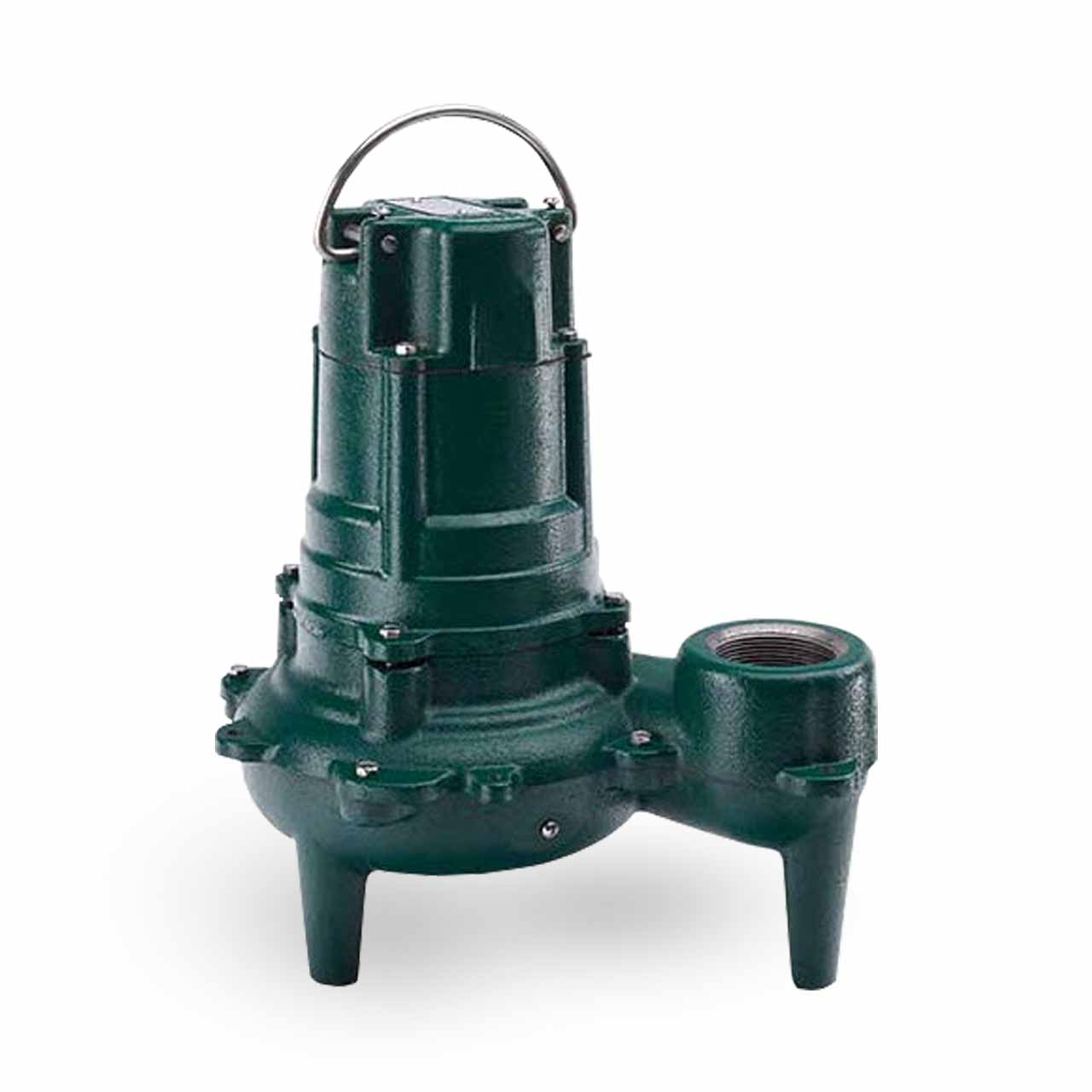

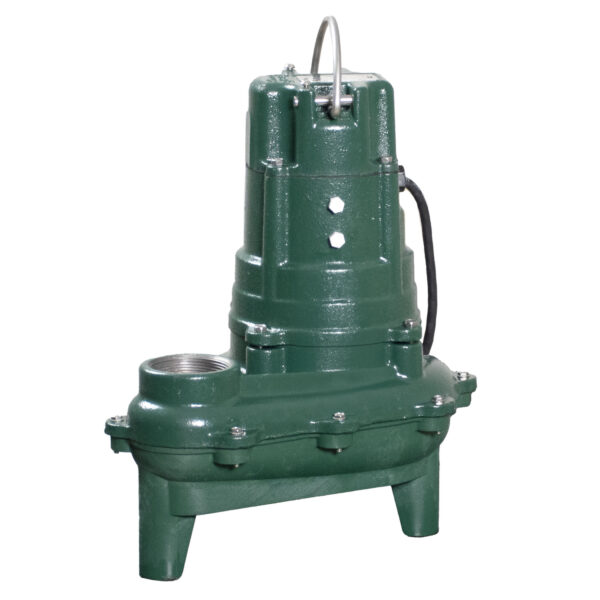

Zoeller 267-0081 Model J267 Sewage Pump 0.5 HP (25 ft)

Product Description

Zoeller 267-0081 is a nonautomatic 1/2 HP submersible sewage pump designed for sewage, effluent, and dewatering applications in residential sewage or septic systems. The J267 operates on 200-208V three-phase power and includes a 25 ft neoprene power cord; it features an oil-filled motor, cast iron housings, and a vortex impeller that passes 2 in spherical solids. The pump requires a piggyback float switch or control panel for operation.

• Nonautomatic 0.5 HP motor, 200-208V, 3-phase, 25 ft UL-listed neoprene cord
• Vortex impeller passes 2 in spherical solids; 2 in NPT vertical discharge; up to 128 GPM and 21.5 ft head
• Cast iron body, oil-filled motor, stainless steel hardware, powder-coated epoxy finish

Product Highlights

Nonautomatic 1/2 HP submersible sewage pump with vortex impeller and 25 ft cord

Product Information

Standard Information

• Brand: ZOELLER
• Manufacturer Part Number: 267-0081

Technical Specifications

• Brand: Zoeller
• MPN: 267-0081
• Model: J267
• Product Type: Nonautomatic sewage pump
• Horsepower: 0.5 HP
• Input Voltage: 200-208V
• Phase: 3-phase
• Frequency: 60 Hz
• Amps: 2.6 A
• RPM: 1725 RPM
• Maximum Head: 21.5 ft
• Maximum Flow Rate: 128 GPM
• Discharge Size: 2 in NPT (vertical discharge)
• Discharge Orientation: Vertical
• Solids Handling: Passes 2 in spherical solids
• Impeller Type: Engineered plastic vortex impeller with metal insert
• Motor Type: Oil-filled motor
• Cord Length: 25 ft
• Cord Type: UL-listed neoprene cord
• Body Construction: Cast iron motor and pump housings
• Hardware Material: Stainless steel screws, handle, and hardware
• Finish: Powder-coated epoxy
• Maximum Operating Temperature: 130 F (54 C)
• Operation: Non-automatic (requires piggyback float switch or control panel)
• Certifications: UL, CSA, cCSAus
• Factory Testing: 100% submerged and tested to published performance curve
